Best Multi Zone Mini Split Quick Connect Line Sets: MrCool vs Zone Air

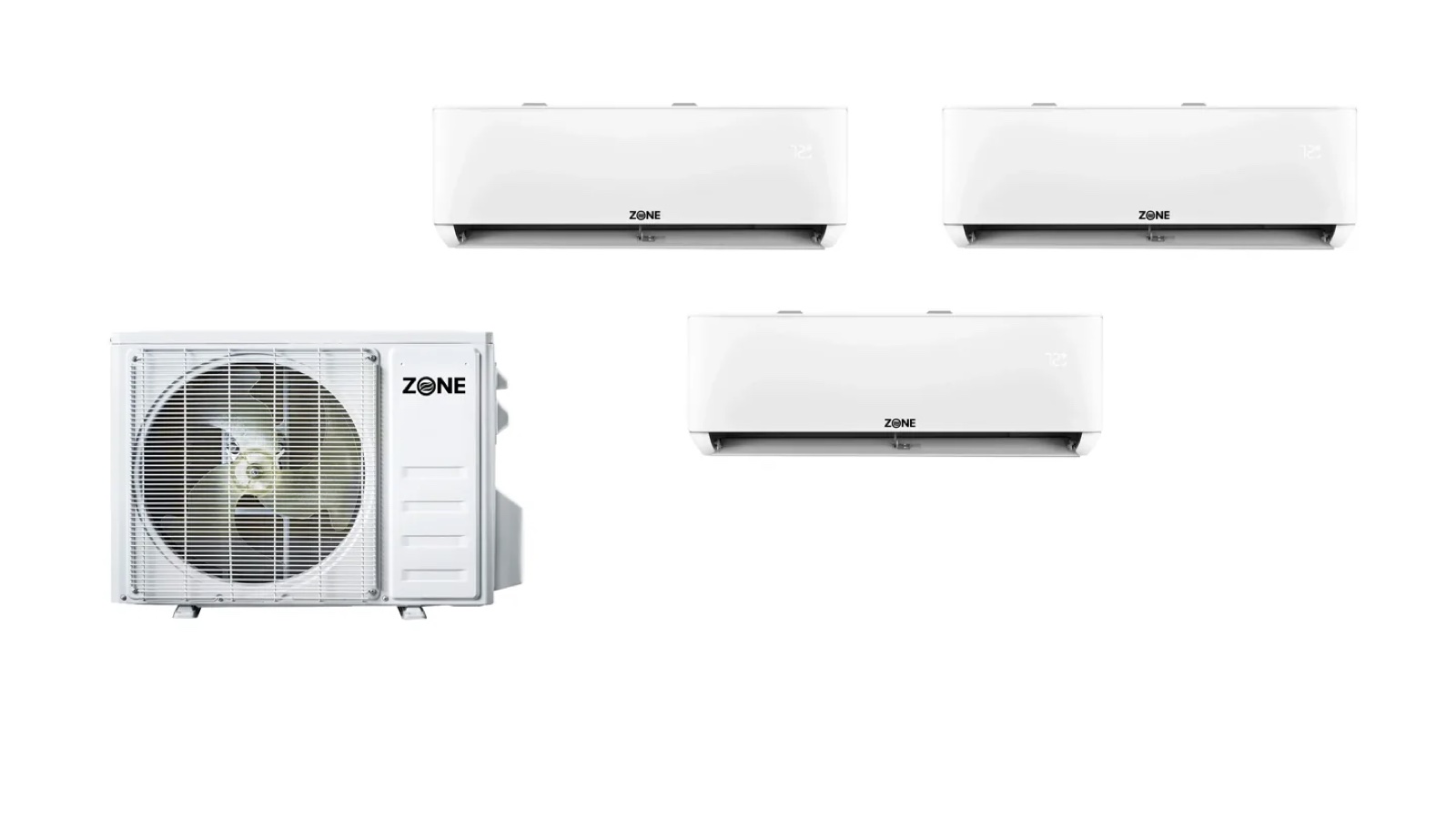

Multi zone quick connect mini split system with one outdoor condenser and three wall mount indoor units

Quick Answer

For the best multi-zone DIY mini split with pre charged line sets in 2026, Zone Air is our pick, with the MrCool DIY 5th Gen as the main alternative.

Because it offers custom-cut line set length options on pre charged line sets and because its outdoor unit is compatible with wall mount, concealed duct and ceiling cassette indoor units - all using the same quick connect technology, Zone Air leads.
MrCool DIY multi-zone systems can support pre charged lines with wall-mounted and OuttaSight ceiling cassette air handlers. There is no pre-charged custom length option. Buyers must choose from fixed lengths, coil the extra on in-between runs, and use couplers for runs over 50 feet.
High efficiency mini splits can achieve up to 24 SEER2 ratings in 2026. The rating for MrCool's 5th Gen multi-zone condensers goes from 21.8 to 23.9 SEER2, depending on size, while the rating for Zone Air's wall mount multi-zone systems is 24 SEER2.
If you want flexible line set routing and mixed indoor unit types (wall + ducted + cassette) on two or three zones, you can get the best overall value and easy installation with Zone Air. MrCool can be the pick for four to six zones on one condenser.

How Multi-Zone DIY Mini Split Systems Work

A multi-zone mini split is a cooling system and heating system where a single outdoor unit sends refrigerant to multiple indoor units across separate zones. Each zone operates independently, so you can keep the bedroom cool while the living room stays warm.

Each indoor unit, or air handler, connects to the outdoor unit with its own refrigerant line set, its own communication wiring and its own condensate drain.
Quick connect pre charged line sets arrive factory-sealed with refrigerant inside, and this eliminates vacuum pumps and field charging completely.
Installing a multi-zone system lets several indoor units connect to one outdoor condenser, and you get independent temperature control in each zone. MrCool's multi-zone systems provide independent temperature control for bedrooms, living areas, basements and home offices. The largest outdoor units can take up to six zones. Zone Air's multi-zone condenser takes two or three zones.
In 2026, the basic components are an outdoor unit, which is an R-454B inverter heat pump, indoor units, which can be wall, concealed duct or cassette depending on brand, and brand-specific pre charged line sets.

What Makes a True DIY Mini Split in 2026?

A true DIY mini split system means you can handle the full mechanical installation yourself, with no EPA 608 certification, no vacuum pump and no refrigerant gauges needed. Depending on local code, the electrical connection may still need a licensed electrician, but the refrigerant side is completely homeowner-friendly.

From the factory, the outdoor unit comes with the correct refrigerant charge already sealed inside.
Sealed and fitted with quick connect fittings, the pre charged line set breaks the seal only when properly connected to both the indoor unit and outdoor unit.
Hand tools only: the homeowner tightens connections with a torque wrench and basic wrenches, with no brazing, no soldering and no flaring.

Semi-DIY systems are different. The condenser may be factory-charged, but the copper line set comes empty and must be evacuated with a vacuum pump and gauges before the charge is released. That's a different category completely.

In 2026, MrCool DIY and Zone Air are the two diy mini split brands in this guide that are offering true DIY pre charged line sets. Pre charged line sets can eliminate the need for vacuum pumps and no EPA certification is needed for installation. DIY mini split systems can save $3,000–$5,000 on installation costs compared to professional HVAC installs, and installation does not need specialized tools or professional certification.

Using non-approved line sets or cutting into the sealed pre charged circuit usually voids manufacturer warranties for both brands.

Pre-Charged Line Sets vs Standard Line Sets

A refrigerant line set is the pair of copper tubing, which is the liquid line and suction line, that connects your indoor unit to the outdoor unit. Whether that line set arrives empty or pre charged determines how complex your install will be.

Standard line set: bare copper tubing shipped empty. It needs on-site flaring or brazing, evacuation with a vacuum pump, and in many cases added refrigerant, which takes EPA certification to buy. Mistakes here can cause leaks and moisture contamination.
Pre charged line set: a sealed assembly shipped with refrigerant inside. Quick connect fittings seal the connection between air handlers and condenser when torqued to spec. Installation can be performed without cutting, flaring or brazing of conventional lines.
The quick connect line sets are designed for easy installation. Pre charged line sets simplify installation for DIY mini split systems. This can drastically cut install time and risk.
MrCool warns against cutting pre charged lines, as it releases the refrigerant charge. The line sets must match the diameter and length needed by the indoor units.

The critical difference: Zone Air offers custom-cut pre charged line sets built to your run length, while MrCool relies on fixed-length line sets that leave excess coil behind the condenser on in-between runs and need couplers past 50 feet.

MrCool DIY Multi-Zone Quick Connect Line Sets (2026)

MrCool's DIY line is built around quick connect pre charged line sets. Their 5th Gen multi-zone outdoor units come in 18K, 27K, 36K, 48K and 55K BTU capacity options, and they can support up to six zones depending on sizing.

MrCool 5th Gen multi-zone outdoor units support multiple wall-mounted air handlers and their OuttaSight ceiling cassette, but they do not offer concealed-duct indoor units with pre charged lines. If you want ducted solutions, you're looking at their separate DIY Hybrid air handler or you're stepping outside the pre-charged multi-zone product range.
Multiple standard lengths are available for line sets including 16, 25, 35 and 50 feet. Line sets can be extended using quick connect couplers when additional length is needed, and MrCool's multi-zone manual lists a maximum of 75 feet for one indoor unit.
MrCool does not offer custom-length pre charged line sets. Users must design layouts around available lengths, and the manual says to keep excess line coiled and stored flat behind the outdoor unit.
DIY installation of MrCool systems can save significant labor costs, and MrCool's DIY 5th Gen warranty covers self-installed systems with no registration needed - provided you use approved accessories and follow brand procedures.

The bottom line: MrCool is a capable diy system with more zones per condenser, but you're locked into fixed line set lengths and limited to wall and cassette indoor units on the pre-charged side.

Zone Air Multi-Zone DIY: Custom Line Sets and Indoor Unit Mix

Are you looking for the best MrCool alternative for 2026 multi-zone DIY, and do you want higher flexibility and installation precision? Zone Air is our top pick.

Zone Air's standard pre charged line sets are 16, 25, 33, 50 and 75 feet long. You can get custom lengths cut to order for a $100 fee per line. With its custom-cut pre charged line set program, Zone Air lets you order each line set to the length you need in whole feet, up to 75 feet per zone. This can minimize extra loops and eliminate the need for couplers.
Zone Air's multi-zone outdoor unit is designed to work with wall-mounted, concealed-duct and ceiling cassette indoor units while still using quick connect, pre charged technology. This mixed indoor unit compatibility is a core differentiator from MrCool's more limited pre-charged pairing options.
Their dual-zone concealed-duct system shows the capability: two slim-duct indoor units with condensate pumps included, operating in cold climates down to −13°F.
Zone Air's wall mount multi-zone systems are rated 24 SEER2, while ceiling cassette and concealed duct systems are rated 19 to 24 depending on configuration. Their 9K BTU wall unit runs as low as 30 dB in quiet mode - quiet enough for bedrooms and offices.
Running on 230V, Zone Air's multi-zone condenser takes two or three indoor units. For rooms without 230V circuits, Zone Air also offers 115V single zone models, and all current models use R-454B refrigerant.

MrCool DIY 5th Gen vs Zone Air Multi-Zone (2026)

Here's a direct comparison of the two DIY multi-zone mini split systems for you to decide.

Feature	MrCool DIY 5th Gen	Zone Air
Pre-charged line set lengths	Fixed: 16, 25, 35, or 50 ft	Standard 16, 25, 33, 50, 75 ft, or custom-cut to the foot up to 75 ft ($100 cut fee)
Couplers needed?	For runs over 50 ft	No, one continuous line per zone
Indoor unit types (pre-charged)	Wall mount, OuttaSight ceiling cassette	Wall mount, concealed duct, ceiling cassette
Zones per condenser	Up to 6 (18K to 55K condensers)	2 or 3 (one 27K condenser)
SEER2 (multi-zone)	21.8 to 23.9 by condenser	24 wall mount; 19 to 24 cassette and concealed duct
Heating rated to	−13°F (18K to 48K); −22°F (55K)	−13°F
Refrigerant	R-454B	R-454B
Warranty (DIY install)	7-yr compressor / 5-yr parts; no registration required	7-yr compressor / 5-yr parts

Line set approach: MrCool's fixed lengths and couplers add connection points on long runs and leave excess on in-between runs. With custom-cut single-run pre charged line sets, Zone Air can reduce leak points and simplify route planning.
Indoor unit options: MrCool limits you to wall and cassette heads. On the same outdoor unit, Zone Air lets you mix wall, concealed duct and cassette. This is critical for homes where you want hidden ducted units in hallways or living rooms.
Install complexity: MrCool multi-zone planning centers on fixed line set lengths. Excess coil is common. With exact-length runs, Zone Air designs can reduce excess tubing left outside.
Taking up to six zones, MrCool's condensers scale bigger. Zone Air's multi-zone condenser takes two or three.
Warranty for DIY: both brands preserve warranty when installed without a licensed technician, provided brand procedures are followed. Energy Star certified systems improve energy efficiency a lot, and both brands offer qualifying models. Zone Air does not need professional installation for warranty to stay valid.

Planning Multi-Zone Layouts and Line Set Lengths

Careful planning before ordering any multi-zone diy mini split in 2026 can save you time, money and headaches.

You should map indoor unit locations for each zone. You can decide on each room's BTU capacity needs based on square footage, insulation and sun exposure. Place the outdoor unit in a location that keeps the total line run distance low.
Measure realistic line set paths, including vertical rises, curves around corners and wall penetrations. Don't measure straight-line distance - measure the actual route the line will follow.
MrCool buyers must choose from stock line set lengths and add couplers when runs go past the longest single line set. You can order each pre charged line set in a custom length within allowed limits from Zone Air.
Minimizing unnecessary couplers and excess coiled tubing reduces leak risk, makes it easy to hide in line covers, and keeps aesthetics clean. Fewer fittings means there are fewer potential failure points.
Always check each brand's published minimum and maximum line set lengths per zone and the total for all zones, especially on 3–5 zone condensers. Sizing matters - a line set of the wrong diameter or length can hurt performance and can void warranty.

How to Connect Quick Connect Pre-Charged Line Sets

This section is a general how-to for MrCool DIY and Zone Air quick connect systems. Always follow your brand's specific manual for exact steps and torque values.

Pre-install checks:

Verify that the model numbers on the outdoor unit, indoor unit and pre charged line set all match - refrigerant type (R-454B vs R-410A), BTU capacity, and generation (such as 5th Gen for MrCool).
Confirm the correct liquid and suction line sizes for your unit's capacity.

Routing the line set:

Route from indoor unit to outdoor unit without kinks, following the minimum bend radius from the manual. Keep lines insulated and protected from weather and sun exposure.

Connection at the indoor unit:

Remove protective caps just before connection. Align quick connect fittings, hand-tighten to avoid cross-threading, then torque with wrenches to the labeled specification. Proper torque is essential to prevent refrigerant leaks at fittings.

Connection at the outdoor unit:

Same process: hand-thread, then torque. Then you can open the service valves and leak-check in the order your manual gives. You can use soapy water on all connection points and watch for bubbles.

Efficiency and R-454B Refrigerant

SEER2 and HSPF2 are the numbers that determine how much you'll pay to run your multi-zone system all year. Higher numbers mean lower energy bills.

MrCool's 5th Gen multi-zone condensers carry SEER2 ratings of 23.9 on the 18K, 23.0 on the 27K and 36K, 21.8 on the 48K and 22 on the 55K. With a 24 SEER2 rating, Zone Air's wall mount multi-zone systems give them a slight efficiency edge over the larger MrCool condensers.
Both brands have switched to R-454B refrigerant in their current-generation systems. R-454B has a lot lower Global Warming Potential than older R-410A.
Pre charged line sets must be specifically matched to the refrigerant type. You cannot mix R-454B line sets with R-410A equipment or vice versa - doing so voids the warranty.
Homeowners should confirm rebate eligibility based on SEER2 thresholds, energy star certification and local or state programs for high-efficiency heat pumps. Many utility incentive programs in 2026 need SEER2 above 20 or 21 to receive rebates, so compare your system's rated efficiency before you shop.

Warranty, Support and Long-Term Reliability

Warranty and support are especially important for DIY systems since many installs do not involve a contractor who might handle claims for you.

MrCool offers a 7-year compressor warranty and 5-year parts coverage, with no registration needed. Using off-brand or improperly installed line sets can void coverage.
Zone Air provides a 7-year compressor warranty and 5-year parts warranty. Their warranty explicitly stays valid for true DIY installations using factory pre charged custom line sets - no professional installation needed. Zone Air's support comes direct from the company.
Both brands need you to use brand-specific line sets. Third-party or generic quick connect line set products will almost certainly void your warranty with either manufacturer.
When evaluating long-term reliability, consider manufacturer responsiveness and whether replacement pre charged line sets stay in stock years down the road. A brand that is committed to keeping accessories available gives you peace of mind that a single failed connection won't need replacing your entire system.

Who Should Choose MrCool vs Zone Air in 2026?

Here's how to decide based on your specific situation, room types, layout complexity and desired indoor unit mix.

Choose MrCool DIY if:

You need four to six zones on one outdoor unit, mostly wall mount or cassette indoor units.
Your line set runs happen to match standard fixed lengths (16, 25, 35 or 50 feet) without awkward excess.
You're comfortable managing couplers and coiling extra tubing, and price or local availability favors MrCool.

Choose Zone Air if:

Do you want precision routing with little excess line and fewer connection points?
You need mixed indoor unit types - wall, concealed duct and ceiling cassette - on a single outdoor unit with two or three zones.
You'll want custom pre charged line sets cut to your length, which can reduce connection points and improve the quality of your installation.
Clean aesthetics matter, and you'd rather not coil excess copper behind your condenser.

When custom pre charged line sets and broad indoor unit compatibility are priorities, Zone Air is our best overall multi-zone DIY choice for 2026. The upgrade from fixed-length to custom-length pre charged lines covers a gap that MrCool has yet to close.

Map your zones. Measure your actual line runs. Price out both MrCool and Zone Air configurations side by side. In many layouts that comparison shows that Zone Air's custom line set approach means less excess copper, fewer connections and a cleaner installation.
