Best DIY Multi Zone Mini Split: MrCool DIY Multi Zone 4th Gen Specs, Warranty & 2026 Alternatives

The MrCool 4th Gen uses R-410A refrigerant and its 4th-gen Quick Connect design, while the DIY 5th Gen moves to eco-friendly R-454B refrigerant and higher SEER2 ratings. Both are fully DIY-ready, but the 4th Gen is typically cheaper in 2026 as stock clears. This article covers specs, sizing, hyper heat performance, Energy Star notes, warranty terms, and how to compare these systems to the newer 5th Gen and Zone Air Free Match DIY alternatives.

Overview: MrCool DIY Multi-Zone 4th Gen vs 5th Gen & Zone Air Free Match

Three systems define the DIY multi zone market right now. The MrCool DIY Multi-Zone 4th Gen remains widely available and budget-friendly. The MrCool DIY 5th Gen pushes efficiency higher with R-454B refrigerant. And Zone Air's Free Match DIY series, listed on zone-air.com as its DIY multi zone systems with a mix-and-match builder for custom combinations, takes a fundamentally different approach to flexibility.

Key differences at a glance:

• Refrigerant: MrCool 4th Gen runs R-410A. MrCool DIY systems in the 5th Gen and Zone Air Free Match both use R-454B refrigerant, a lower-GWP option that aligns with current federal refrigerant regulations.
• Efficiency: The MrCool DIY Multi-Zone system operates efficiently with SEER ratings ranging from 20.5 to 24 across its lineup. The MrCool DIY 5th Gen has a SEER2 rating of up to 23.6. Zone Air's wall-mount multi zone systems reach 24 SEER2.
• Zone coverage: MrCool supports up to five independently controlled zones. Zone Air Free Match runs 2 or 3 zones per condenser, with the added advantage that every indoor unit in the series is compatible with the multi-zone condenser.

Zone Air's Free Match DIY system line lets customers pair the multi-zone condenser with any wall, ceiling cassette, or ducted air handler in the series using simple communication wire hookups. This universal compatibility is why Zone Air stands out for homeowners planning complex or evolving layouts.

The concise recommendation: choose the 4th Gen multi zone for a budget DIY install, the 5th Gen for top efficiency, and Zone Air Free Match DIY for the most flexible entire home layouts. (For a head-to-head single-zone spec table, see our guide to MrCool alternatives for DIY mini splits.)

Core Specs of MrCool DIY 4th Gen Multi-Zone (Typical 36k BTU, 4-Zone)

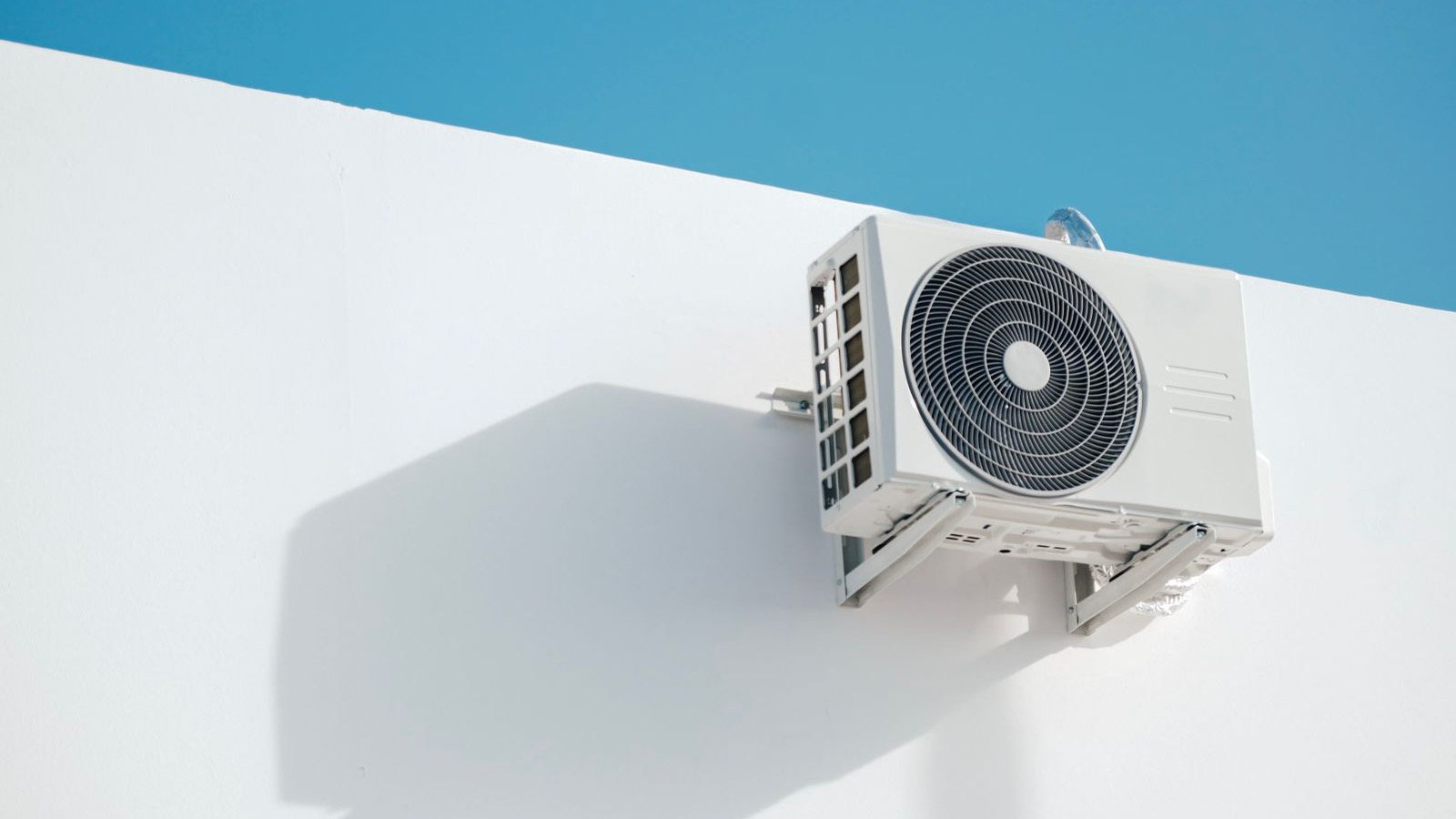

When people reference the MrCool DIY Multi-Zone 4th Gen, they typically mean a 36k BTU outdoor heat pump condenser paired with up to four indoor air handlers. The MrCool 4th Gen system is particularly noted for its DIY-friendliness, and the 36k BTU model remains the most popular configuration.

Available condenser capacities include:

• 27k BTU multi zone condenser (2–3 zones)
• 36k BTU multi zone condenser (3–4 zones, the most common)
• 48k BTU multi zone condenser (4–5 zones for larger homes)

Common indoor head sizes are 9k, 12k, 18k, and 24k BTU wall units, which can be mixed on a single condenser within capacity limits.

For the representative 36k BTU 4-zone 4th Gen MrCool system (model DIY-MULTI4-36HP230C), key numbers from the published spec sheet include:

• SEER2: approximately 21.5
• EER2: approximately 10.5
• HSPF2: approximately 8.8
• Coverage: roughly 1,400 to 1,600 sq ft depending on climate and insulation
• The MrCool DIY system can cover up to 2,290 sq ft in larger configurations

The systems can operate in cooling mode at outdoor temperatures up to 122°F and heating performance down to -13°F. It features Follow Me mode for personalized airflow control via the remote. Electrical requirements are 208–230V single-phase, with a minimum circuit ampacity around 27 amps and a maximum breaker size of 45 amps for the 36k BTU model. Each air handler runs its own low-voltage communication wire back to the outdoor condenser.

Indoor Air Handlers & Zone Options (Wall, Cassette, Ducted)

Multi zone ductless mini split systems are built around multiple indoor air handlers, each serving a separate room or zone. The type of air handler you choose affects aesthetics, airflow distribution, and installation complexity.

For MrCool DIY 4th Gen, supported indoor options include:

• Standard wall-mounted air handler units (most popular, easiest to install)
• OuttaSight ceiling cassette heads for rooms where wall space is limited
• Limited ducted options compared to Zone Air's lineup

Zone Air's Free Match DIY system advantage is significant here. Any compatible indoor unit, whether wall mount, slim duct ("Thin-Air"), or ceiling cassette ("Airframe"), can be paired with the multi-zone outdoor unit in the Free Match series without complex engineering. You can build 2- or 3-zone systems on one condenser (it accepts up to 36,000 BTU of connected indoor capacity), add a second condenser for larger homes, and adjust head sizes over time.

Common BTU pairings on a 36k BTU condenser include:

• MrCool DIY 9k BTU covers up to 400 sq ft (bedrooms, offices)
• MrCool DIY 12k BTU covers up to 550 sq ft (medium living areas)
• MrCool DIY 18k BTU covers up to 800 sq ft (large open-concept spaces)
• Three 9k BTU units plus one 12k BTU air handler on a 36k BTU condenser
• Two 18k BTU wall units for larger open rooms

Low-profile cassette heads keep spaces looking clean, while compact wall-mounted units work well in tight rooms. Zone Air offers more variety in indoor head styles, which matters for homes with mixed room types.

DIY Installation: Line Sets, Communication Wire & Tools

The MrCool DIY Multi-Zone system is designed for homeowner installation without specialized HVAC tools. The DIY installation approach minimizes the need for vacuuming and professional refrigerant handling. Both MrCool 4th Gen and many Zone Air Free Match DIY systems are built for homeowners with basic tools.

MrCool DIY systems use pre-charged Quick Connect line sets. Each Quick Connect line set is pre-charged with refrigerant (R-410A for 4th Gen), eliminating the need for a vacuum pump or an HVAC license. Each line set is dedicated to a specific air handler, with lengths available in 16, 25, and 35 feet. The total maximum line set run across all zones can reach approximately 221.5 feet on the 36k BTU model. (Our guide to pre charged quick-connect line sets covers how the couplers work and how to pick a length.)

Communication wire connects each indoor unit to the outdoor condenser. This low-voltage multi-conductor cable (typically 14–16 AWG, 4-conductor stranded copper, UV-rated for outdoor runs) carries control signals between units.

Installation requires no specialized tools or training. No special tools are needed. MrCool's technology emphasizes simplicity in installation for DIY users, and installation time for MrCool DIY systems can be completed in a single day without an HVAC technician. In fact, installation takes only a few short hours, and most homeowners can install a unit in under 60 minutes. Installation can be completed without professional help.

High-level DIY steps:

1. Mount the outdoor condenser on a pad or bracket
2. Install indoor heads on walls or ceilings
3. Drill through-wall holes, route pre charged line sets and communication wire
4. Connect Quick Connect fittings (no refrigerant handling required)
5. Wire the unit to the electrical panel with the proper breaker
6. Test all modes: heat, cool, fan, and defrost

Zone Air Free Match DIY multi zone systems use the same pre-charged quick-connect line sets as Zone Air's single-zone units and keep compatibility simple, so any approved indoor and outdoor unit can be connected as long as total BTU mapping is respected. Both MrCool and Zone Air provide install videos and checklists. Note that some jurisdictions or rebates may still require a licensed electrician for the electrical connection, even for easy installation systems.

Performance: Hyper Heat, Cold-Climate Operation & Year-Round Comfort

Hyper heat and cold-climate labels mean one thing: stable heating capacity at low outdoor temperatures for true all season comfort. This matters in colder climates where standard heat pumps lose output as temperature drops.

MrCool's cold-climate offerings include models that maintain strong heating well below freezing. The MrCool DIY Hyper Heat operates efficiently in temperatures as low as -22°F, using variable-speed compressors and advanced defrost logic to keep rooms warm. The standard MrCool DIY 5th Gen operates to about -13°F, so the Hyper Heat models are the serious option for northern climates. The 4th Gen multi zone models can potentially heat reliably down to -13°F.

Compared to electric resistance heating, ductless mini split systems deliver far better winter efficiency. A mini split heat pump moves heat rather than generating it, achieving COP advantages that translate to lower monthly bills. The system can operate quietly, and zoned control means you only condition rooms you're using.

Zone Air Free Match DIY series handles typical US climates well (Zone Air publishes a -13°F heating floor for its multi zone condenser), and for very cold regions, customers should verify specific low-temp heat pump ratings and HSPF2 values rather than relying solely on cooling SEER2 scores.

Homeowners can use multi zone ductless mini split systems for entire home comfort by combining hyper heat zones for bedrooms and living areas with standard zones for a garage or bonus room on the same DIY system where allowed by the brand.

Energy Efficiency & Energy Star Considerations in 2026

New federal efficiency rules and refrigerant changes in 2026 directly affect which DIY multi zone mini split systems qualify for rebates and certifications.

Energy Star certification applies only to select MrCool models. Not every 4th Gen 36k BTU multi zone condenser is Energy Star certified, so you need to verify status model by model before counting on rebate eligibility. Some single-zone sizes carry the Energy Star label while certain multi zone configurations do not.

MrCool DIY systems achieve up to 23.6 SEER2 efficiency ratings in the 5th Gen series. MrCool systems use eco-friendly R-454B refrigerant for better efficiency in the 5th Gen, and these units are built to hit higher SEER2 thresholds that may qualify for more rebates. However, availability and listing status can vary as the market adjusts to the transition.

MrCool DIY systems minimize energy waste and maximize savings through inverter-driven variable speed compressors and zoned operation. Zone Air Free Match DIY series targets competitive efficiency by focusing on real-world savings via zoning: only conditioning rooms that need it. This approach can beat central systems on operating cost even without an Energy Star label.

When shopping, use SEER2 and HSPF2 numbers along with your local utility rebate lists to compare between similar DIY mini splits. A 36k BTU system that is not Energy Star certified may still be the most efficient and economical choice if properly sized and zoned for your home.

Sizing & Layout: 36k BTU, Entire Home Coverage & Zone Planning

Proper BTU sizing is the single biggest factor in comfort and efficiency. A 36k BTU multi zone condenser is popular because it handles most 1,200 to 1,600 sq ft homes when zoned correctly. The MrCool DIY system can cover up to 2,290 sq ft in its largest configurations.

Typical room pairings:

• Bedrooms or offices (up to ~400 sq ft): 9k BTU air handler
• Medium living areas (up to ~550 sq ft): 12k BTU air handler
• Large open spaces or combined kitchen-living rooms (up to ~800 sq ft): 18k BTU air handler

A common layout strategy for entire home comfort: a four-zone 36k BTU ductless mini split for main living zones, plus a small extra DIY mini split in a detached garage or workshop if needed. This avoids oversizing the main system, which can reduce dehumidification and waste energy.

Zone Air Free Match DIY lets homeowners add additional zones over time, mix wall units and slim ducted air handlers, and re-balance BTU loads as they remodel or finish basements. This staged approach is a major advantage for growing families or renovation projects.

Before finalizing your DIY system, factor in insulation quality, sun exposure, ceiling height, and your climate zone. Use online BTU calculators or manufacturer support chat to confirm sizing. Oversizing wastes money; undersizing leaves you cold.

Smart Controls, Comfort Features & Everyday Use

Modern DIY mini splits act like smart appliances, not just basic AC units. The control features built into today's ductless mini split systems make a noticeable difference in daily comfort.

MrCool features include:

• Wi-Fi control and app scheduling from your phone
• Follow Me remote sensor mode that tracks temperature near the remote rather than at the wall unit
• Louver position memory and power-outage auto-restart
• Voice control via Amazon Alexa and Google Assistant

The systems are compatible with smart controls, including apps and voice recognition via Alexa and Google Assistant. You can say "set living room to 70 degrees" and adjust each zone independently. Both MrCool and Zone Air DIY systems support these integrations.

Comfort tuning options make multi zone systems shine:

• Fan-only modes for air circulation without heating or cooling
• Dehumidification mode for humid climates
• Sleep curves that gradually adjust temperature overnight
• Separate air handlers per room eliminate the "too hot upstairs, too cold downstairs" problem

Having independent temperature control in each room transforms how spaces feel, especially in homes where a single thermostat used to dictate comfort for every zone.

Warranty, Registration & Protecting Your DIY Investment

Warranty terms are critical with DIY installs, since labor is not typically included and registration rules determine your level of protection.

For the MrCool DIY multi zone 4th Gen, the standard manufacturer warranty includes:

• Parts warranty for MrCool systems lasts 5 years
• MrCool offers a 7-year compressor warranty
• Unauthorized modifications or non-DIY-approved installation methods may affect coverage

Registration is not required for that standard coverage: if the original owner never registers the unit, the warranty defaults to 5 years parts and 7 years compressor. MrCool allows registration for extended warranty options that may include lifetime compressor coverage. Optional lifetime warranty coverage is available through MrCool's Care Program, a bi-annual subscription costing approximately $63.28 plus tax that includes maintenance kits. You must register within 60 days of installation and enroll within 4 months to qualify for the upgraded coverage, which can include a 7-year unit replacement warranty and limited lifetime compressor protection.

For the 5th Gen and select models, similar or enhanced care program tiers exist. Third-party protection plans can extend parts and labor past the manufacturer warranty for additional peace of mind.

Zone Air DIY and Free Match systems also provide robust warranties: 5 years parts and 7 years compressor, with DIY installation explicitly allowed and not voiding coverage. The key advantage is that all Free Match components are designed to work together, simplifying support and claims if something goes wrong.

To protect your investment:

• Keep installation photos and receipts
• Record all serial numbers
• Register the product online immediately after install
• Check whether local codes require electrical permits even for DIY units

Zone Air Free Match DIY vs MrCool DIY: Which is Best for You?

Zone Air is often the right solution when customers want maximum flexibility across present and future zones. The Free Match philosophy, where every indoor unit in the series works on the shared multi-zone condenser, is a fundamentally different approach from buying a pre-configured kit.

Zone Air advantages:

• Universal compatibility within the Free Match DIY series means any wall, cassette, or ducted air handler works with the multi-zone condenser
• Easier upgrading or adding air handlers later without replacing the outdoor unit
• R-454B eco-friendly refrigerant across the entire lineup
• Strong support for complex floor plans with mixed indoor head types

MrCool DIY strengths:

• Fully pre charged ductless mini split systems with Quick Connect line sets
• Extremely beginner-friendly easy installation with massive library of install videos
• Strong name recognition in the market for rebates and financing
• The MrCool 4th Gen system is particularly noted for its DIY-friendliness and professional installation is never required

Different buyer personas:

• Choose the MrCool DIY multi zone 4th Gen if you want a single purchase, straightforward 36k BTU multi zone kit with everything in the box
• Choose Zone Air Free Match DIY if you're planning staged renovations, additions, or a highly customized entire home layout

Before deciding, map your 3 to 5 year home plan. If you expect to remodel, add rooms, or finish a basement, the Free Match flexibility can pay off significantly when zones need to change.

Buying in 2026: How to Choose, Budget & Plan Your DIY Mini Split Project

The year 2026 is a transition period: refrigerant changes, new efficiency standards, and more DIY-ready multi zone heat pump choices than ever. MrCool DIY systems use R-454B refrigerant in the newest generation, while 4th Gen R-410A units remain available and legal to install (New York is the exception, with its own state deadline).

Budgeting basics:

• A 36k BTU 4-zone MrCool DIY 4th Gen package typically falls in the $3,000 to $5,000 range depending on indoor head selection
• Comparable Zone Air Free Match DIY multi zone bundles start around $3,040 for a dual-zone 24k BTU configuration
• Budget an additional $200 to $500 for install supplies: mounting brackets, line hide covers, communication wire, and any electrical work

Timing tips:

• Check lead times and stock availability, especially for 4th Gen units being cleared out
• Off-season installs in spring or fall often yield better pricing and faster shipping
• Coordinate with any electrical panel upgrades before ordering

Simple decision path:

1. Confirm BTU sizing using room measurements and a calculator
2. Decide between maximum convenience (MrCool 4th or 5th Gen) versus maximum flexibility (Zone Air Free Match DIY system)
3. Verify warranty terms, Energy Star certification status, and available rebates in your area
4. Shop for the best in-stock pricing and factor in any savings from seasonal sales

Start by sketching your zone plan on a simple floor diagram. List each room's square footage, note which spaces need independent temperature control, and then compare a MrCool 36k BTU 4-zone package against a custom-built Zone Air Free Match configuration side by side (our roundup of DIY ductless mini split alternatives covers the other brands worth a look). Whether you prioritize the proven Quick Connect simplicity of a MrCool system or the mix-and-match freedom of Zone Air, getting the sizing and layout right first is the perfect solution to avoiding costly mistakes and maximizing your long-term savings.
