Easiest DIY Mini Split Installation: Pre-Charged Quick Connect

The simplest mini split to install yourself is one that ships with a pre-charged quick-connect line set. This guide explains what makes a system truly DIY, compares the two brands that ship this way (MrCool DIY 5th Gen and Zone Air), and walks through a typical install.

By HVAC On SalePublished · Updated

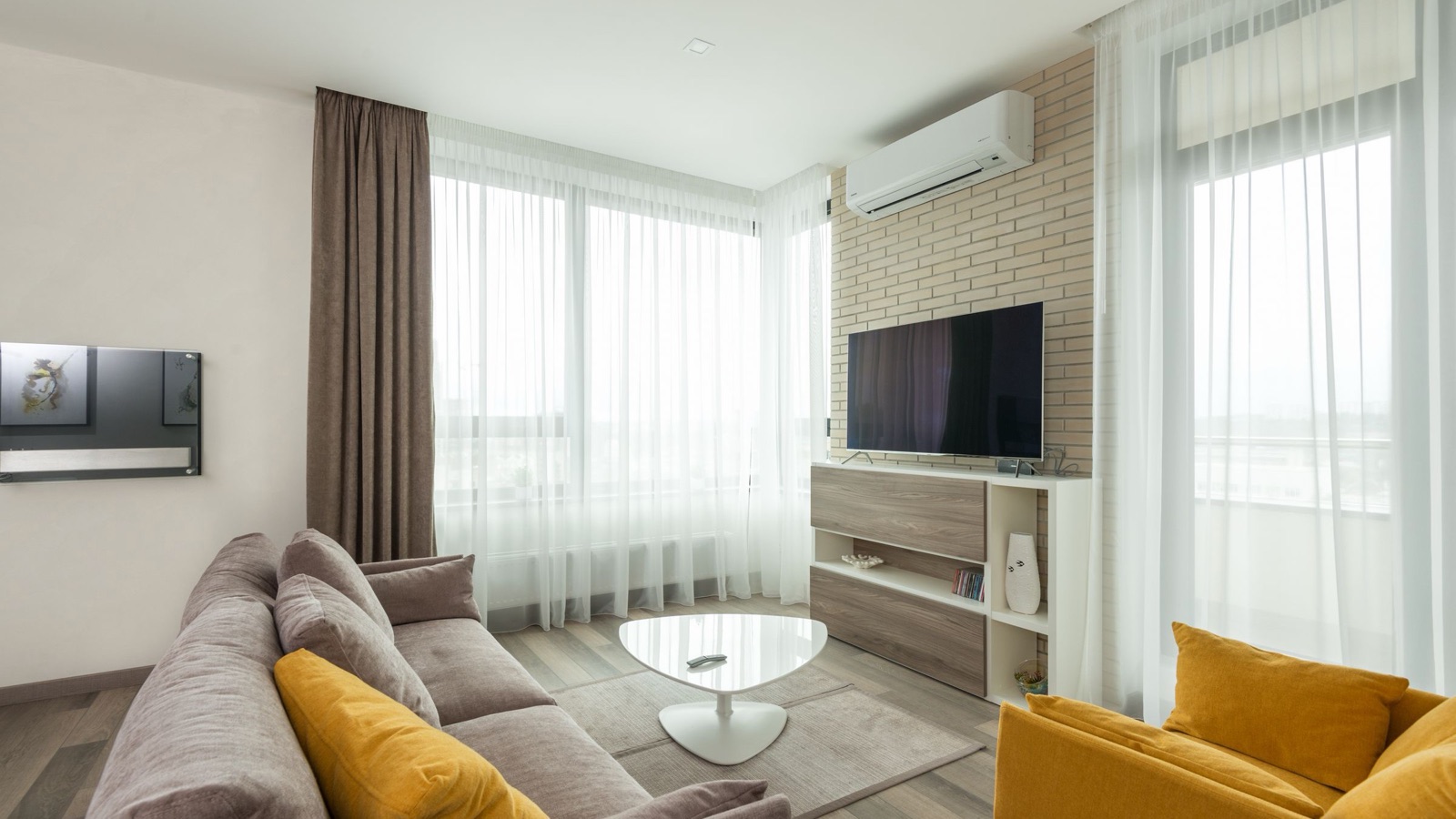

Wall mounted ductless mini split head in a bright living room, the kind of single zone install a pre charged quick connect line set makes possible in a day

Quick Answer

The easiest DIY mini splits in 2026 use factory pre-charged quick-connect line sets: no vacuum pump, no gauges, no refrigerant handling and no EPA license. Of the brands compared here, MrCool and Zone Air are the two shipping systems this way; Pioneer and Senville still require vacuuming and flaring or brazing.

  • Line sets: MrCool sells fixed 11.5, 16, 25, 35 and 50 ft lengths; Zone Air cuts one continuous line set to length, 5 to 75 ft.
  • Power: both offer 9K and 12K 115V systems. MrCool's are hardwired at the condenser; Zone Air sells an optional plug-in cord kit for a dedicated 15A GFCI outlet.
  • Efficiency: at 115V, MrCool's 23.6 (9K) and 23.5 (12K) SEER2 edge Zone Air's 23. At 230V, Zone Air's 9K and 12K wall units are rated 24 SEER2.
  • Price: a Zone Air 12K system was $1,999.99 (115V) or $2,049.99 (230V), against $2,359 for MrCool's DIY 5th Gen E-Star 12K 115V, as listed on September 17, 2026.
  • Track record: MrCool has the longest history in quick-connect DIY and Hyper Heat models rated to −22°F.

What Makes a Mini Split Truly DIY

Many brands market "easy install" systems that still need a vacuum pump, manifold gauges and often an EPA-certified technician. A true DIY system uses a pre-charged line set: factory-filled copper with spring-loaded valves that open only when the fittings are fully tightened. That removes the refrigerant side of the job. Electrical work is separate, and a dedicated circuit may still call for an electrician. Brands like Pioneer and Senville ship empty copper lines that must be flared or brazed, evacuated and checked with gauges. Our guide to quick-connect pre-charged line sets explains how the fittings work.

MrCool DIY 5th Gen vs Zone Air

FeatureZone AirMrCool DIY 5th Gen
Pre charged line set lengthsCustom‑cut, 5–75 ft in whole feet, one continuous runFixed 16, 25, 35, 50 ft; coupler kit for longer runs
Quick connect valve pairs on a 60 ft runOneTwo (two line sets joined by a coupler)
115V single zone9K and 12K; optional plug‑in cord kit on a dedicated 15A GFCI outlet9K and 12K; hardwired at the condenser
SEER2 (9K/12K single zone)23 at 115V, 24 at 230V23.6 (9K) / 23.5 (12K), 115V
12K system price (Sept 17, 2026)$1,999.99 (115V) / $2,049.99 (230V)$2,359 (115V E-Star)
Heating floor−13°FAbout −13°F standard; −22°F on Hyper Heat
Head types on one multi zone condenserWall, ceiling cassette, concealed ductedWall, OuttaSight ceiling cassette
Zones per condenser2 or 3Up to 6 (55K condenser)
Warranty5‑yr parts / 7‑yr compressor, no registration gate, DIY install allowed5‑yr parts / 7‑yr compressor, no registration required

MrCool DIY 5th Gen

MrCool pairs a wall-mounted air handler and outdoor condenser with R-454B pre-charged quick-connect line sets. Line set diameters follow the indoor unit: 1/4" × 3/8" for 6K–12K heads, 1/4" × 1/2" for 9K–18K, and 3/8" × 5/8" for 24K–36K, in fixed lengths of 11.5, 16, 25, 35 and 50 ft. The fittings are Intertek-tested (report 5029931) to UL 207 and CSA C22.2 No. 140.3 with a 921 PSI rating, and are hand-tightened then torqued with a wrench. Runs beyond 50 ft use a coupler; MrCool's 66 ft and 75 ft listings are 50+16 and 50+25 bundles with a coupler kit, which doubles the valve connections. The DIY Pro Cable combines power and communication wiring and is often bundled with the 35 and 50 ft kits.

Systems range from 9,000 to 36,000 BTU (9K up to 400 sq ft, 12K up to 550, 18K up to 800, 36K up to 1,500). The 9K and 12K run on 115V wired at the condenser; 18K and larger need 208/230V. Multi zone condensers pair wall and OuttaSight cassette heads (ducted air handling is a separate DIY Hybrid product), up to six zones on the 55K condenser.

Best for: standard-length runs, buyers who want the longest-established DIY brand and wide accessory availability, larger multi zone layouts, and very cold climates (Hyper Heat).

Zone Air

Zone Air ships each indoor unit a single quick-connect line set cut to the length you specify, 5 to 75 ft in whole feet. A 40-ft run gets a 40-ft line set rather than a 50-ft kit with 10 ft coiled behind the condenser, and a 60-ft run is one continuous line with one valve pair rather than two sets and a coupler. The line sets use kink-resistant copper and UV-resistant insulation. Its multi zone condenser takes two or three heads and can mix wall, cassette and concealed ducted units. The optional 115V cord kit lets the 9K and 12K systems plug into a dedicated 15A GFCI outlet where local code allows.

Best for: runs that fall between standard lengths or exceed 50 ft, rooms without a 230V circuit, and mixed head types on one condenser.

For after-sale context, MrCool's Trustpilot profile showed 3.2 out of 5 from 89 reviews as of September 2026.

Step-by-Step Installation (Either Brand)

  1. Plan the layout. Pick indoor and outdoor locations, keep at least 12 inches of open space around the outdoor unit, and confirm your total run fits the system's maximum line set length.
  2. Mount the indoor unit. Fix the mounting plate to studs using the included template, and level it so condensate drains correctly.
  3. Drill the wall penetration. A roughly 3 to 3-1/2 inch hole carries the lines, condensate hose and communication wire; slope it slightly down toward the outside.
  4. Prepare the line set. Uncoil carefully to avoid kinks. With fixed lengths, coil any excess behind the condenser.
  5. Route the line set. Pass lines, drain and wiring through the wall sleeve with gentle bends; add a line-set cover if desired.
  6. Connect the indoor unit. Remove the caps, hand-tighten, then torque with a wrench. Never cut or re-flare a pre-charged line. Pull-test the connection.
  7. Connect the outdoor unit. Repeat at the condenser, level the unit on a pad or shims, and leak-test every fitting with bubble solution before opening the valves.
  8. Power up. Plug in the optional 115V cord kit where offered and permitted, or wire to a dedicated breaker and disconnect. Open the service valves as the manual directs, then test cooling and heating.

A planned single-zone install typically takes four to eight hours. Our 115V DIY mini split guide covers 9K and 12K installs in more detail.

Single-Zone or Multi-Zone

A single-zone system (one indoor unit, one condenser) is the fastest install and suits a garage, bonus room, office or addition. A multi-zone system runs two or more heads from one condenser, and you plan a line path and electrical for each. Size by room area and climate; a calculator that accounts for insulation, windows and ceiling height is more accurate than square footage alone.

Cold-Climate Performance

MrCool DIY Hyper Heat models operate to −22°F. MrCool's standard DIY 5th Gen operates to about −13°F, with full capacity to roughly 5°F. Zone Air's heat pumps are rated to −13°F, with Energy Star certification on select SKUs. If your area regularly sees −15°F or colder, Hyper Heat is worth the premium. Both brands use inverter compressors that modulate rather than cycle.

Controls

MrCool includes app control, an IR remote with Follow Me sensing, louver memory, and Alexa and Google Assistant support. Zone Air offers app and remote control, Follow Me sensing, schedules, sleep modes and Alexa and Google Home compatibility, and lists 30 dB in quiet mode. Each head on either brand is adjustable independently.

Cost, Warranty and DIY vs Pro

  • Labor savings: DIY typically saves $1,500–$2,500 on a single zone and $3,000–$5,000 on a multi-zone whole-home install.
  • Pricing: MrCool's DIY 5th Gen E-Star 12K was $2,359 and the 9K $2,329 at MrCool HVAC Supply on September 17, 2026, each with a 25 ft line set. A Zone Air 12K is $1,999.99 at 115V or $2,049.99 at 230V with a 16 ft line set included.
  • Warranty: MrCool is 5 years parts and 7 years compressor with no registration required; an extended limited lifetime compressor replacement requires MrCool's paid Care Program. Zone Air publishes the same 5/7 coverage with no registration gate, DIY installation allowed, and 30-day returns on uninstalled systems. Cutting a pre-charged line voids the warranty on both.
  • Incentives: the federal 25C credit ended for property placed in service after December 31, 2025; check state, utility and HEAR programs (the DSIRE database lists them by state).
  • When to hire help: complex concealed ducted runs, difficult electrical panels, or multi-story routing. Buying a DIY system and hiring an electrician only for the wiring still cuts cost substantially.

Our recommendation: if your line run is non-standard, longer than 50 ft, or you want a 115V plug-in option, Zone Air's custom-cut line set and cord kit make for the simpler install at a lower listed price. If your run matches a standard length, you're on 115V and want the highest efficiency there, or you need −22°F heating, MrCool DIY 5th Gen is the better match.

Get help picking a DIY mini split system

Specifications, prices, review counts, ratings and warranty terms are manufacturer-published or publicly listed as of September 2026 and subject to change. Verify current listings before purchase. MrCool, DIY 5th Gen, E-Star, OuttaSight, Hyper Heat and DIY Pro Cable are trademarks of their respective owners, as are Pioneer and Senville. HVAC On Sale is not affiliated with or endorsed by them.
