How to Read an AC Model Number (So You Know What You're Buying)

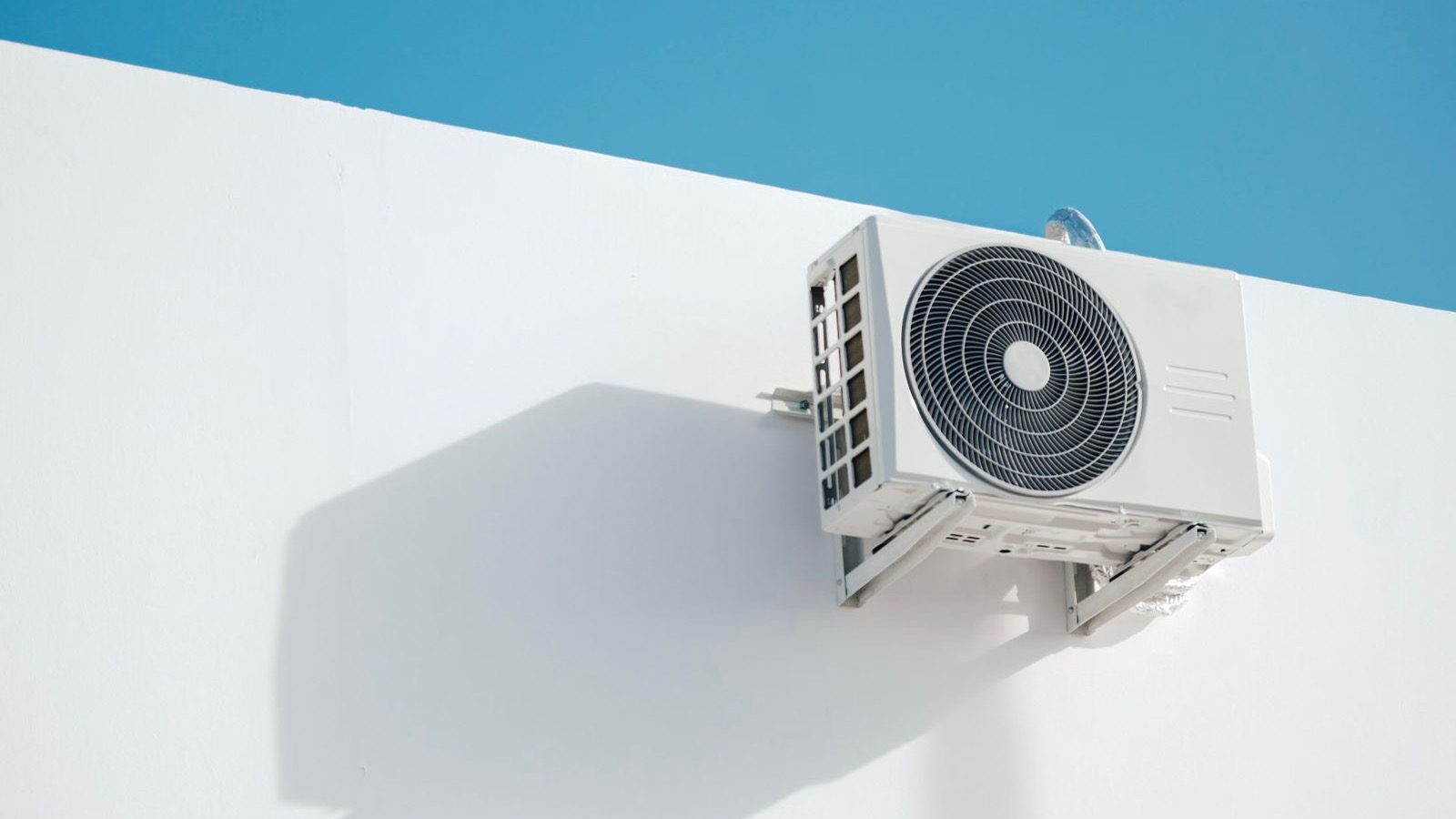

White outdoor condenser unit mounted on a wall, showing equipment relevant to reading an ac model number

Key Takeaways

A two- or three-digit capacity code buried in the model number tells you the unit's BTU rating, and you can find the tonnage by dividing that cooling capacity code by 12.
The model numbers on both your indoor unit and outdoor unit are worth checking. Split systems are rated as matched sets, and the wrong model numbers can cut efficiency and void warranty coverage.

Model Number vs Serial Number

Before you learn how to read an AC model number, separate these two strings of characters in your mind. They appear on the same label, but they answer different questions.

Model number answers: What is this unit? How many tons? What series? Heat pump or straight cool?
Serial number answers when this specific unit was manufactured, whether the warranty is still active, and how old it is.

Where to Find the Model Number

Outdoor unit: Look for a metal plate or weatherproof sticker on a side panel, usually near the refrigerant service valves or behind an electrical access door. On outdoor units, the data plate is near the service valves. Salt air and sun can fade these labels, so it's a good idea to check sooner rather than later.
Ducted indoor units: Air handlers and furnaces with evaporator coils carry a separate label inside the blower cabinet door or on the side of the unit in a closet, attic or garage. Indoor units may have the serial number inside the cabinet, on the same label as the model number.
Ductless mini splits: The outdoor unit's label is on the right side or side panel of the cabinet. On the indoor unit, you'll find the label on the underside of the head or behind the front cover near the air filter.

How Manufacturers Structure AC Model Numbers

There is no universal code across all brands, but most follow similar patterns that mix letters and numbers in sections you can guess. In the middle of the code, there is a block that shows cooling capacity in thousands of BTUs per hour. This capacity code usually has a two- or three-digit number that stands for BTUs. You might see "036" (36,000 BTU, or 3 tons) or simply "24" (24,000 BTU, 2 tons), depending on the brand.

Here is a plain generic layout:

[Product family / Type] [Efficiency tier] [Capacity code] [Voltage / Suffix]

Reading the Outdoor Unit Model Number

Step 1: Locate the model line. On the data plate, you'll see the line labeled "Model," "Model No.," or "Model Number." It sits next to fields for volts, phase, minimum circuit ampacity (MCA), and maximum fuse or breaker size (MOCP). It's a good idea to check the manufacturer's label for both the model and serial number.

Step 2: Identify product type. Whether you are looking at an air conditioner condenser, a heat pump or a packaged unit, the opening letters will tell you. In Carrier systems, for instance, model numbers that start with "24" show an air conditioner condenser, while "25" signals a heat pump. You can confirm those letter codes with documentation from the brand's website or installation manuals.

Step 3: Find the capacity code. Look for the two- or three-digit group that matches a standard tonnage code: 18, 24, 30, 36, 42, 48 or 60. In a Carrier model like 24ACC636A003, the "36" at positions 7 and 8 is the capacity code: 36,000 BTU/hr, or 3 tons. In a Goodman model like GSX140361, the "036" block is the capacity code.

Step 4: Read the remaining characters. The letters and numbers that follow usually define efficiency tier, refrigerant era and sometimes design generation or revision. For example, in Goodman's GSX140361, the "14" before the capacity code matches a 14-SEER efficiency class. Remaining suffix characters may reference voltage, factory configuration or internal build sequences. These vary by brand, so it's always a good idea to cross-reference with the product's spec sheet or installation manual.

Reading the Indoor Unit Model Number (Air Handler or Furnace)

Air handler model numbers often include blower size (CFM range), cabinet width or orientation (upflow, downflow, horizontal), and electric heat strip options in addition to cooling tonnage. A furnace paired with an evaporator coil may have two separate model numbers: one for the furnace itself and one for the coil. You'll want to check both for compatibility with the outdoor condenser.

When replacing only the outdoor unit, matching the new condenser to the existing indoor air handler's model number is critical for efficiency and warranty compliance. A mismatch can degrade SEER2 performance and may give the manufacturer grounds to deny a warranty claim on the compressor.

Finding AC Tonnage from Model Numbers

For most U.S. split systems, a two- or three-digit block in the model number shows total cooling capacity in thousands of BTUs per hour. Common capacity codes include 18 for 1.5 tons, 24 for 2 tons and 36 for 3 tons. Here is the full standard list:

018 = 18,000 BTU/hr = 1.5 tons
030 = 30,000 BTU/hr = 2.5 tons
042 = 42,000 BTU/hr = 3.5 tons
048 = 48,000 BTU/hr = 4 tons
060 = 60,000 BTU/hr = 5 tons

To find tonnage, divide the cooling capacity code by 12. So "048" divided by 12 equals 4 tons.

Ductless mini split model numbers may hide capacity in watts or in a slightly different code (such as 09, 12 or 18 standing for thousands of BTU), but it will still line up with the published BTU rating on the spec sheet.

Check Efficiency and Refrigerant from the Model Number

Full SEER2 or HSPF2 ratings are not spelled out in a model number, but the code often gives clues about the efficiency tier and refrigerant era. Many brands place a digit or pair of digits near the capacity code that signals the SEER class. Efficiency ratings may be shown by numbers near the capacity code. In a Lennox model like XC16-036-230, the "16" refers to the 16-SEER product line. In a Rheem RA1436AJ1NA, the "14" points to a 14-SEER class. These numbers serve as approximate markers. They do not reflect the tested SEER2 value that matters for current regulatory compliance.

Older systems usually have lower energy efficiency compared to current production. Units from the R-22 era, for instance, were manufactured when minimum SEER requirements were lower. Refrigerant type is usually printed as plain text elsewhere on the label, but you can sometimes guess it from the series or production era. An R-22 system is at least a decade old. Units built after January 2025 by brands like Carrier and Trane may ship with lower-GWP refrigerants such as R-454B rather than R-410A.

When SEER2 claims on a listing sound too good for the series name, it's a good idea to look up the model pairing in the AHRI Directory. Every ENERGY STAR mini-split listing we carry at HVAC On Sale includes an AHRI reference number so buyers can verify SEER2 independently.

For 2023-and-later equipment, published SEER2 and EER2 values from AHRI-certified test results are more important than any "SEER hint" digit in the model code.

Voltage and Electrical Requirements in the Model Number

Some model numbers include codes for voltage and phase. In a Lennox XC16-036-230, the trailing "230" means 208/230V, single-phase. Other brands use suffix letters that are less obvious.

Residential U.S. air conditioning systems are almost always 208/230V, single-phase. Light commercial or rooftop units may be 208/230V or 460V, three-phase. If you see "460" or "3PH" in a model code, that unit requires three-phase power, which typical homes do not have.

The actual electrical fields printed on the label next to the model number (Volts, Phase, Minimum Circuit Ampacity, Maximum Fuse or Breaker) are the final word, not the letters inside the code. If you are planning a DIY-friendly mini split installation, match breaker size and wire gauge to MCA and MOCP from the full spec sheet. The model number alone is not enough.

Misreading voltage or phase codes can lead to buying a unit that cannot be powered by the home's panel. That is an expensive mistake when ordering equipment online, because returns involve freight costs and, in the case of non-defect returns, a restocking fee.

Heat Pump vs Straight Cool in the Model Number

Some model numbers tell apart air conditioners and heat pumps using specific letters in the prefix. In Carrier's system, a "24" prefix usually means straight-cool condenser while "25" means heat pump. Trane uses letter codes such as "T" versus "W" in certain families to tell the two apart. The cabinets can look identical from outside.

For packaged units, the code can also show whether it is a gas/electric package, an all-electric heat pump or a cooling-only package with electric heat strips. A furnace packaged with a cooling coil carries its own coding for heating input in MBH (thousands of BTU per hour of gas input), which is separate from the cooling capacity code.

Matching Indoor and Outdoor Model Numbers

Modern split systems are tested and rated as matched pairs: one outdoor model number with one indoor model number and sometimes a specific TXV or metering device. Efficiency ratings like SEER2 and HSPF2 depend on those exact matches. Mixing random indoor and outdoor units can reduce delivered capacity and void parts of the manufacturer's warranty.

When upgrading only one side of an older system, look up AHRI-certified matches using both model numbers to confirm ratings and compatibility. The AHRI Directory lets you search by outdoor and indoor model to verify the pair's published efficiency.

How Model Numbers Help Estimate AC Age

Here is how date coding works for several major brands:

Carrier: Carrier serial numbers use the first two digits for the week of manufacture and the next two for the year. A serial starting with "3218" means week 32 of 2018.
York: York serials have year letters that repeat every 21 years, so you may need other clues (like refrigerant type or model series) to narrow down the exact decade.

Most HVAC systems last between 15 and 25 years. Knowing your HVAC age helps you plan for repairs or replacements. You often get asked about your HVAC system age during home sales. If the serial number is unreadable, the model number and series can still offer a rough age range. A unit using R-22 refrigerant, for example, was manufactured before the production phaseout. It is at least several years old and likely approaching end of life.

Using Model Numbers When Replacing Equipment

Model numbers also matter for ordering a compatible replacement air handler, coil or line set length for mini splits and central systems. If you are replacing a condenser but keeping your existing indoor coil, the new outdoor unit must be an AHRI-certified match for that coil to maintain warranty coverage and published SEER2 performance.

Common Pitfalls When Reading AC Model Numbers

Mistakes happen. Here are the ones we see most often:

Misreading capacity digits. Reading "024" as 24 tons instead of 2 tons is a 12x error. Always match the code against the standard list (018 through 060) and split by 12.
Assuming all brands code tonnage the same way. Positions shift. In Carrier, the capacity code sits at positions 7-8. In Goodman, it may be positions 5-7. Look up your specific brand's format.
Using outdated online decoding charts. Manufacturers changed model schemes around the 2023 SEER2 transition and again with the April 2025 refrigerant shifts. Always cross-check against the current product data sheet for your series.

Why the Label Matters for Warranty and Parts

Warranty registration and claims usually need the exact model number and serial number as they appear on the manufacturer's label, not what someone remembers or what an installer wrote on an invoice. One wrong digit can derail a claim.

Parts departments use model numbers to pull the correct control boards, fan motors, coils and TXVs. A single wrong digit in the model or serial can mean receiving a compressor that does not physically fit. The label also lists approved refrigerant charge amounts and electrical ratings, which technicians rely on for safe installation and refrigerant charging.

When you buy equipment online, providing accurate model numbers upfront speeds up quoting and reduces the risk of returns. Unused equipment in original, unopened packaging may be returned within 30 days of delivery with a return authorization number, but returns for reasons other than seller error or a defect carry a 15% restocking fee. The buyer pays return freight. Refunds are issued within 10 business days of inspection. Getting the model number right the first time avoids that cost completely.

When to Call a Pro

Call a licensed HVAC technician when you run into:

Any situation where the unit's age exceeds 15 years and you are deciding between repair and replacement

A technician can confirm actual delivered capacity, duct suitability and line set sizing, none of which the model number alone warranty. Any work involving refrigerant handling or major electrical changes must be done by a licensed HVAC pro per EPA Section 608 and local code, regardless of how well you understand the model number.

Even if you are comfortable with basic decoding, it's a good idea to schedule a pro checkup when planning to replace a 10- to 20-year-old unit. It protects both safety and your investment in the long run.

How We Use Model Numbers for Quotes

When you email your existing model numbers and serial numbers, we use them to check capacity, voltage, configuration and whether a proposed newer system is a reasonable match. That step catches issues before a 400-pound condenser arrives at your curb on a pallet.

Frequently Asked Questions

Can two AC units have the same model number?

Yes. Many units share the same model number because it describes the configuration, not the individual machine. Every 3-ton, 16-SEER Carrier Comfort condenser built to the same spec carries the same model number. The serial number is what uniquely identifies each physical unit. That is why warranty registration and recall notices rely on serial numbers, not just the model.

Why doesn't my model number match the brochure?

Manufacturers sometimes add suffix letters or digits for factory revisions, coil options or packaging changes that do not appear in marketing brochures. The brand's technical spec sheet or installation manual usually lists the full model code, which should match the nameplate exactly. If there is still confusion about what series the unit belongs to, contact a dealer or email us at HVAC On Sale with a photo of the label.

Can I tell warranty status from the model number alone?

No. Warranty status depends on the manufacturing date (from the serial number), the installation date, and whether the system was properly registered with the manufacturer. None of those can be confirmed from the model number alone. Combine the serial number, model number and any paperwork or online registration records to check coverage. Note that some manufacturers shorten warranty terms for rental or non-owner-occupied properties, so property use matters beyond just the model code.
