Senville AURA Dual Zone DIY Mini Split: Easy-Install Guide

Why a Dual Zone Senville AURA DIY Mini Split Is Easy to Install

A dual zone diy mini split system lets homeowners heat and cool two separate areas with a single outdoor condenser and two indoor air handlers-no ductwork required. Senville Aura is a popular high-efficiency ductless heating and cooling system that DIY-minded homeowners love for garages, home additions, basements and upstairs bedrooms.

This guide focuses on the official pre-charged 27,000 BTU Senville AURA 2-zone unit (12,000 + 18,000 BTU, 230V). DIY mini splits are designed for easy installation by homeowners, and most handy people can handle the mounting, line routing and wiring in a few hours. However, Senville Aura is not a true plug-and-play DIY installation-a professional technician must perform pressure tests and evacuation during installation to maintain your warranty. If you want a two-zone system you can finish yourself without calling a technician, Zone Air sells its own pre-charged, quick-connect dual zone DIY mini split in the same 12K + 18K configuration, and can help with sizing before you buy.

What Is a Dual Zone DIY Mini Split?

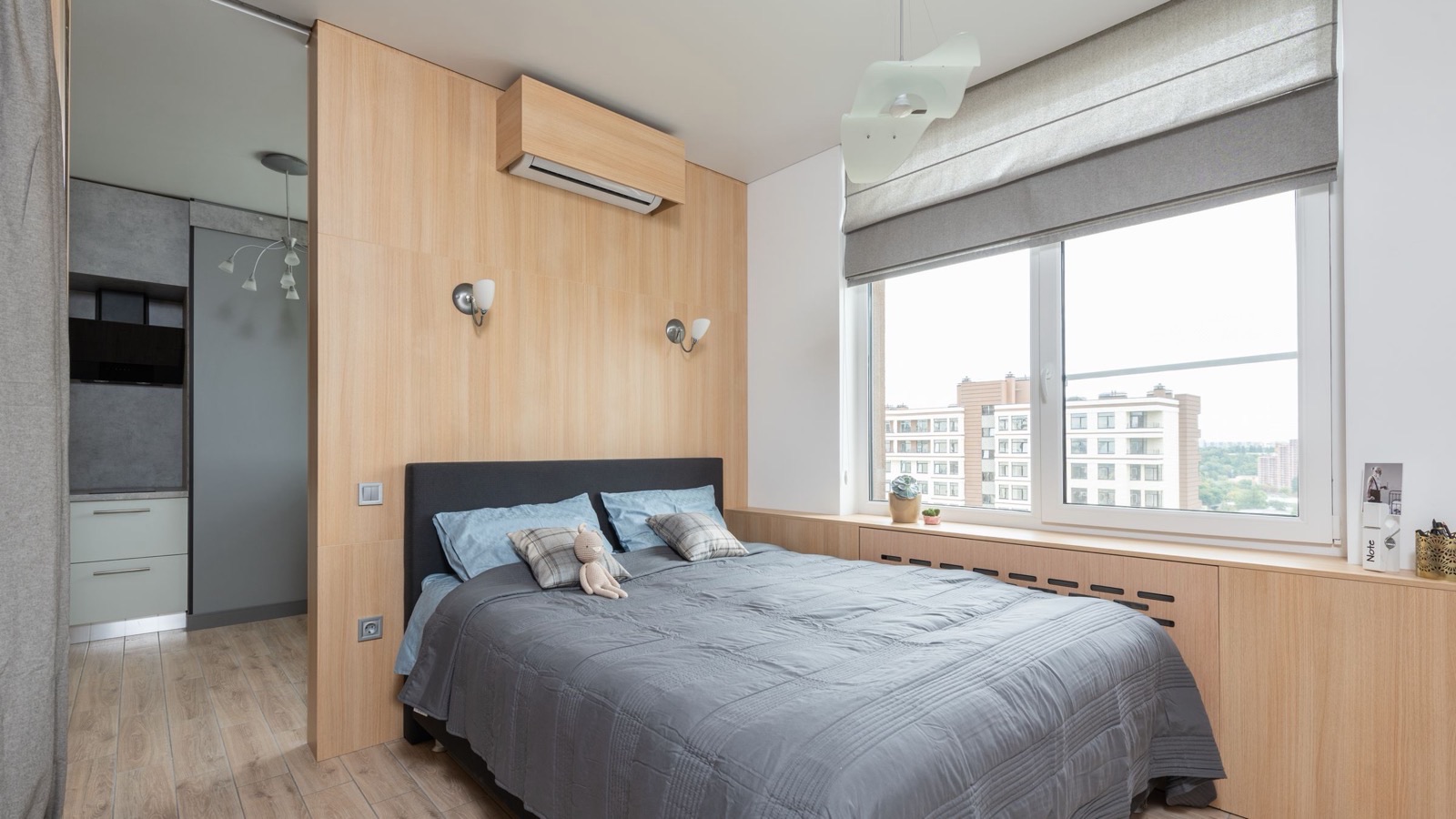

The Senville Aura Dual-Zone system is made to heat and cool two rooms at the same time, with one outdoor condenser connected to two wall-mounted indoor units. Each indoor unit in a mini split has its own remote and thermostat so you can control it on its own, and that gives you true zoned comfort.

With the Aura series, you have an air conditioner, dehumidifier, fan and heat pump all in one system. "Pre-charged" means the outdoor condenser already has refrigerant in it. That refrigerant is enough for a specific line length (75 ft combined for the 27K model, using R-454B). The unit comes with indoor units, pre charged lines, communication cables and mounting hardware.

Unlike some competitors-MRCOOL DIY systems include pre-charged refrigerant lines with quick-connect fittings, Klimaire DIY systems feature built-in Wi-Fi for control, and Cooper and Hunter systems come with pre-flared copper lines-Senville AURA uses standard flare fittings requiring proper torque and professional refrigerant release. For two-zone setups, the AURA hits a great balance of performance and cost compared to DIY systems with 3 or 4 zones, which are more complex.

Benefits of the Senville AURA DIY Dual Zone

Efficiency and savings. DIY mini splits use inverter technology for energy efficiency, changing the speed of the compressor to match the demand. The Aura series has high SEER ratings, often 20+ to 25+ SEER, and Senville Aura is Energy Star certified with a 23 SEER2 rating on the dual-zone 27K model.

Zoned comfort. With Senville Aura, you can get dual-zone independent temperature control. Set a 400 sq ft bedroom to 68°F while keeping a 700 sq ft living area at 72°F-each zone has its own mode (cool, heat, dry, fan, auto).

Quiet operation. Indoor units of Senville Aura can operate as quietly as 24 dB, far below any window unit.

All-season heating and cooling. Senville Aura performs efficiently as a heat pump rather than generating heat with electricity. The system provides efficient heating down to -22°F (-30°C), and Senville Aura can efficiently heat down to -30°C, making it a year-round solution even in cold climates.

Smart features. Senville AURA models offer turbo and sleep modes, and Senville Aura supports smart home integration so you can control the temperature with Wi-Fi and smartphone apps.

Installation Requirements and Planning

Installing a dual-zone mini split system involves handling electrical and refrigerant lines, so proper planning is essential. Installation must comply with National Electrical Code (NEC) and Canadian Electrical Code (CEC). Senville systems require a thorough understanding of local building and electrical codes.

Electricity supply for dual-zone systems must involve a dedicated high-voltage circuit. Senville Aura needs a 220V/240V high-voltage circuit for installation. For both the indoor and outdoor units, Senville Aura systems need proper clearance and airflow. The path of the suction line for Senville Aura must minimize sharp kinks.

Most DIY mini split installations take 4 to 8 hours, though getting the electrical ready and getting the permits can add time. DIY mini split installation usually takes 4 to 8 hours for the mechanical work alone. Zone Air's free mini split sizing calculator and live technical support (8 AM–6 PM MT) can help you check that your selection matches your room size and your electrical setup before you buy.

Step-by-Step Overview

This is a high-level guide, and you should always follow the official Senville installation manual and local codes.

1. Unbox both indoor units, the outdoor condenser, the pre-charged lines and the hardware, and check all of it to make sure nothing is damaged.
2. Mount the indoor units with the mounting plate on studs, and make sure they are level. Drill a hole through the wall that is 3–4 inches across and slope it slightly downward so it drains to the outside.
3. Run the line sets and the drain through the wall sleeve with turns that are gentle. Never kink refrigerant lines.
4. Set the outdoor condenser on a pad or wall bracket that is level, with enough clearance for airflow.
5. Connect the flare fittings to the torque specs that the manufacturer gives you.
6. Call a licensed professional. Senville Aura models need the standard HVAC steps for installation, and that means the pro does the pressure testing, evacuation and refrigerant release. That step is expected for warranty coverage and you might need an HVAC license in your area.
7. Do the electrical work using the wiring diagram, and run the dedicated circuit through a disconnect box to connect it.
8. Test each zone in cooling and heating modes, check error codes and make sure the condensate drains the way it should.
9. Seal the holes in the wall with exterior-rated caulk, and put line set covers on to give it a clean finish.

What Sets a Zone Air Dual Zone DIY Mini Split Apart

If the part above you wanted to skip was the pressure test and the evacuation step, that's the part you don't have to do with a pre-charged quick-connect system. Zone Air's 30K dual zone system matches a 12K and an 18K wall unit with one 27,000 BTU outdoor unit (230V, 30A double-pole breaker, up to 1,500 sq ft) and zone-air.com lists it direct at $3,639.99 as of October 2026, with pre-charged line sets bought per zone.

• No vacuum pump, no gauges. The refrigerant is sealed in the factory-charged line set and never opens to atmosphere, so there is no vacuum pump, no gauge set and no EPA 608 certification in the install. In most areas it's treated as an electrical-only permit (check locally).
• Installing it yourself does not void the warranty. Zone Air has 5 years on parts and 7 years on the compressor with no registration deadline, and a DIY install keeps that coverage.
• Line sets cut to your measurement. As of October 2026, of the brands compared here, Zone Air is the only one that cuts your pre-charged line set to the exact length you measure, any whole foot from 5 to 75, and each run up to 75 ft is one continuous factory-sealed set with no field joint. MRCOOL sends fixed 11.5, 16, 25, 35 and 50 ft sets plus couplers and has you coil the excess.
• 24 SEER2 with wall units. On 230V with wall-mount heads the Zone Air 27K outdoor unit is rated 24 SEER2, against MRCOOL's 23.9 (18K) and 23 (27K) multi-zone condensers. Ceiling cassette and concealed ducted heads have a lower rating. That rating is 19 to 21 SEER2.
• Mix the indoor units. As of October 2026 it is the only DIY mini split that lets you mix wall-mount, ceiling cassette and concealed ducted units on one outdoor unit, so the bedroom can get a wall unit and the living area a cassette.
• Cold and hot weather. It's rated to heat down to −13°F, which is the same floor as MRCOOL's standard DIY 5th Gen (higher-tier DIY models are rated lower), and to cool in outdoor temperatures up to 131°F. MRCOOL publishes 122°F.
• Room to grow. You can add a third head later through the spare port on the 27K outdoor unit. You do it with another pre-charged line set.
• Terms. 30-day returns on uninstalled units and free shipping to the lower 48, with 1–2 days to process and 2–5 in transit. Zone Air sells direct, so the shipping and return terms come from the manufacturer. A dealer may not take a return at all and send you to the brand instead.

The honest downside: the dual-zone kit is 230V only, so you still need the dedicated circuit. The 24 SEER2 figure is for wall-mount heads.

Choosing the Right System and Getting Help from Zone Air

Choosing the correct size is the most important step. To cool a room effectively, you need to match the BTU rating to the room size, and these guidelines show you how to do that:

• Use 20–25 BTUs per square foot for sizing
• Increase BTUs by 20% for rooms with ceilings that are 10 ft high
• Add 4,000 BTUs for kitchen environments due to heat
• Increase BTUs by 10–15% for rooms that get a lot of sun exposure

A 12K + 18K configuration suits unequal areas-like a bedroom plus a great room. Two similar rooms match better with a 12K + 12K selection. Always confirm your electrical panel can support a 30A dedicated breaker before you buy.

Register your Senville AURA unit and keep installation records to ensure your 10-year compressor warranty stays intact. Zone Air does not sell Senville. What it sells is its own pre-charged 2-zone DIY kit in the same 12K + 18K configuration, plus the line sets, line set covers and mounting brackets to go with it.

Ready to add real comfort and ditch the window units? Ask us for a quote on a dual zone diy mini split system you can install confidently and safely.
