How to Wire an AC Disconnect: Safe, Code‑Conscious Guide for U.S. Homes

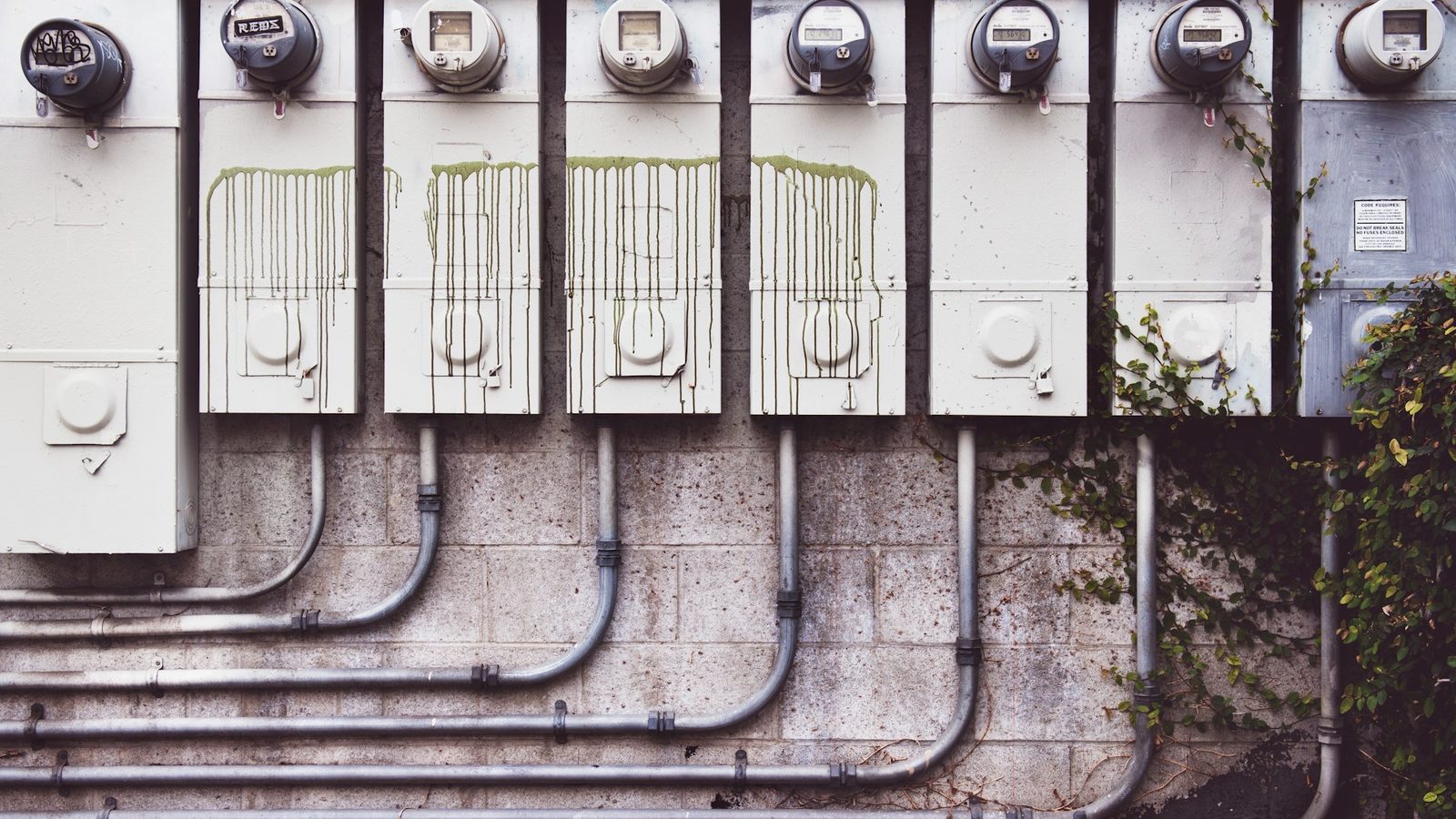

Outdoor electrical meter boxes and disconnect panels on a concrete wall, demonstrating how to wire an ac disconnect box setup

Key Takeaways

An AC disconnect is a safety shutoff mounted near the outdoor condenser that lets a technician cut power before servicing. It is required by the National Electrical Code (NEC) to be within sight of the unit.
The basic wiring path runs from a two-pole breaker in the main panel, through appropriately sized cable to the disconnect's line side, then from the disconnect's load side out to the condensing unit.
Many U.S. areas need a licensed electrician for work inside the main panel. It's a good idea to check with your local building department before you start.
Always shut off main power, verify all wires are de-energized with a meter, and follow NEC and local code. Once an electrical part-wire, disconnect, breaker-has been installed, energized or cut to length, it usually cannot be returned.
In coastal and storm-prone areas, weather-rated enclosures and corrosion-resistant hardware aren't optional. They are essential. Hurricane Sally dropped over 24 inches of rain on Pensacola in 2020, so this matters if you're in a similar climate.

AC Disconnect Basics and Safety Requirements

An AC disconnect is the outdoor switch that sits between your main electrical panel and the air conditioner or heat pump condenser. Its purpose is simple: it gives a technician a way to shut off power right at the unit before opening it up. Every central AC and heat pump installation in the U.S. has one.

How It Fits Into a 240V System

In a typical residential setup, a two-pole breaker in the main service panel sends power to the disconnect through a dedicated branch circuit. The load terminals on the disconnect then send power out to the outdoor condensing unit, usually through a short length of liquid-tight flexible conduit. Two hot wires carry 240V, and an equipment ground wire bonds the unit to the panel's grounding system.

Two Common Disconnect Styles

At home centers, you'll find two main types.

Non-fused pull-out or flip-switch disconnects - These simply break the circuit when opened or pulled out. They don't contain any overcurrent protection of their own.
Fused pull-out disconnects - These hold fuses that are sized per the equipment nameplate. If your AC unit's nameplate specifies a "maximum fuse size" rather than a generic "maximum overcurrent protection device," you may need this type.

Reading the Nameplate

Before you buy anything, you should find the data plate on the outdoor unit. Two numbers matter most.

MCA (Minimum Circuit Ampacity) - This tells you the minimum current-carrying capacity that your wire must have. Size your copper cable to meet or exceed this number.
MOCP (Maximum Overcurrent Protective Device) - This is the largest breaker or fuse that is allowed on the branch circuit. Your breaker must not exceed this value.

These two numbers, along with the unit's voltage rating, drive every sizing decision: wire gauge, breaker amperage and disconnect amp rating.

Code and Permitting in Plain Language

NEC Article 440 covers wiring for air-conditioning equipment. Here's what matters for a disconnect installation.

The disconnect must be within sight of the condenser (NEC §440.14). Interpretations vary by area, but placing it on the wall right next to the unit is the safest approach.
The disconnect must be rated for at least 115% of the nameplate load current (NEC §440.12).
Wire is sized by MCA and the breaker is sized by MOCP. Under NEC Article 440, the breaker can actually be larger than the wire's ampacity because the compressor has internal thermal overload protection. This is a rule that is specific to motor circuits, so don't apply it elsewhere.
Many areas need a licensed electrician for any work inside the main panel. Some areas will let you pull your own permits if you live in the home. It's a good idea to check with your local building department before you start.

Safety First, Every Time

This cannot be overstated.

Turn off the main breaker. Lock or tag it if possible.
Verify that all wires are de-energized with a non-contact voltage tester or multimeter.
Wear appropriate PPE: insulated gloves and safety glasses.

We sell equipment and parts at HVAC On Sale, not installation. If you're not fully comfortable with electrical work, it's a good idea to hire a licensed electrician for the panel breaker and final terminations. The cost of a service call is a fraction of the cost of a mistake.

Returns and Sizing

Once an AC disconnect, wire or breaker has been installed, energized or cut to length, it usually cannot be returned. Make sure you confirm sizing and code requirements before you start pulling cable. Measure twice, buy once.

Gulf Coast and Coastal Considerations

If you're in a coastal or hurricane-prone area, your disconnect needs to hold up to more than just sun. Hurricane Sally made landfall at Gulf Shores, Alabama at 5 AM on September 16, 2020, as a Category 2 with 105 mph sustained winds. NAS Pensacola recorded a 92 mph gust, Pensacola Bay reached 5.60 ft above MHHW (the third-highest water level on record there), and a gauge 4 miles west of NAS Pensacola measured 24.88 inches of rain. After Sally, many technicians found that older enclosures let water pool inside, which oxidized wires and rusted screws.

Planning, Mounting and Wiring the AC Disconnect

This section walks through the practical steps of how to wire an AC disconnect. Keep in mind that exact details vary by panel type, breaker brand and local code, so adapt accordingly and always defer to your equipment's wiring diagram and your local Authority Having Jurisdiction (AHJ).

Planning Stage

Before touching a tool:

Read the outdoor unit's nameplate. Confirm the voltage (usually 208/230V single phase for residential central AC) and note the MCA and MOCP.
Size the breaker so it must not exceed MOCP, size the disconnect amp rating so it's at least 115% of nameplate load current, and size the copper cable based on MCA.

Here's a general reference table for common residential units. Always defer to your specific nameplate data.

Unit Size	Approx. MCA	Typical Breaker (MOCP)	Copper Wire Gauge
2-ton (24,000–30,000 BTU)	16–22 A	25–30 A two-pole	10 AWG
3-ton (36,000 BTU)	22–30 A	30–40 A two-pole	10 AWG (8 AWG for long runs)
4-ton (48,000 BTU)	29–35 A	40–50 A two-pole	8 AWG
5-ton (60,000 BTU)	35–45 A	50–60 A two-pole	8 AWG or 6 AWG for long runs

Source: General ranges from wirefillchart.com and manufacturer nameplates. Always use your unit's actual data.

Selecting the Right Breaker and Disconnect

The breaker must match your panel brand and bus type. Don't mix brands unless the breaker is UL-classified for that panel.
Choose a two-pole breaker that is rated at or below the MOCP.
Choose a disconnect with an amp rating that is equal to or higher than what is needed by the nameplate calculation. If the unit specifies fuses, it's a good idea to get a fused disconnect and install time-delay fuses at the correct amperage.

Location and Mounting

Mount the disconnect within line of sight of the condenser, usually on the exterior wall nearest the unit, 3 to 6 feet above finished grade.

Running Cable and Conduit to the Disconnect

Keep wires neatly routed to the line and load terminals inside the disconnect box.

Wiring at the Main Panel

With the main power off and verified dead.

Install the new two-pole breaker in an available slot.
Land the two hot wires (usually black and red) from the cable that is running to the disconnect onto the breaker terminals.
Land the bare or green ground wire on the panel's grounding bar.
If a neutral is needed by the unit (some heat pumps with crankcase heaters or control circuits need one), land the white wire on the neutral bar.

Wiring at the Disconnect - Line Side

Strip insulation cleanly and don't nick the copper.
Insert the incoming hot wires into the LINE lugs of the disconnect.
Torque terminal screws to the manufacturer's specification. Loose connections cause resistance heating, voltage drop and eventual failure.
Bond the incoming equipment ground wire to the disconnect's ground bar or bonding screw.

Load Wiring at the Disconnect

Connect the outgoing hot wires to the LOAD lugs. These feed the outdoor condensing unit.
Run a properly sized equipment ground wire along with the hot wires to the unit's ground lug.
If the unit needs a neutral, route it through as well, keeping it identified and separate.

Color Conventions

Standard U.S. practice uses black and red for hots, white for neutral when present, and green or bare for ground. But color alone is not a warranty, so always verify with a meter and follow the unit's wiring diagram. Some older installations or remodels may have non-standard colors.

Most straight-cool condensers and many heat pumps use only two hots and a ground at the disconnect. No neutral runs through. Check the unit's documentation before assuming.

Connecting the Disconnect to the AC Unit

From the load side of the disconnect to the condenser, use a liquid-tight flexible metal conduit (whip), usually about 6 feet long.

Pull wires that are sized for the MCA through the whip.
Connect the wires to the unit's terminal block per the wiring diagram, and land the ground on the unit's grounding lug.

Final Checks and Power-Up

Double-check every lug is tight.
Insert the pull-out in the ON position (or flip the switch on).
Reinstall dead fronts and covers on both the disconnect and the panel.
Turn on the main breaker, then turn on the AC circuit breaker.
Verify the unit is operating properly from the thermostat.

In coastal and high-rain areas like our Pensacola base, seal around conduit entries and use drip loops above the disconnect to keep water from pooling inside the enclosure. It's a small step that prevents premature corrosion.

If anything about breaker sizing, aluminum versus copper wires or grounding is unclear, stop and bring in a licensed electrician. Guessing on electrical work creates hazards that no YouTube videos can undo.

Testing, Maintenance and Calling a Pro

Once the AC disconnect is wired, the job isn't finished. Testing, periodic inspection and knowing when to call a professional all matter, especially if you want your equipment warranty to hold up under review.

Functional Testing

With power restored:

Pull the disconnect handle or flip the switch to OFF and confirm that power is actually cut to the outdoor unit's terminals.
Restore the disconnect and start the system from the thermostat. Listen for normal startup sounds.

Annual Maintenance

At least once a year (more often in salt-air environments), do a quick inspection.

Open the disconnect enclosure and look for rust, moisture, insect nests or rodent damage.
Clear away vegetation, dirt and debris so a technician can access the disconnect quickly.

Warranty Implications

Many HVAC manufacturers expect electrical work to comply with code and be performed by qualified personnel. Wrong breaker sizing, improperly terminated aluminum wire or a missing ground can become issues if a warranty claim is reviewed. Document your installation because photos of nameplate data, wire sizes and breaker ratings are worth keeping.

When to Call a Pro

Call a licensed electrician if you notice any of the following.

The breaker trips repeatedly
Melted fuse holders inside the disconnect.
Buzzing or crackling sounds coming from the disconnect or panel.
Any sign that existing wiring doesn't match the unit's nameplate requirements.

Need Help Matching Equipment?

If you're planning a new or replacement AC or heat pump system, email us at [email protected] and we can help match equipment to your electrical service, voltage, breaker size and disconnect rating, before you buy. We don't provide phone support or installation services, but we'll make sure you order the right unit for your setup.

FAQ About Wiring an AC Disconnect

Is an AC disconnect always required?

Yes. Under NEC §440.14, a disconnect within sight of the outdoor AC or heat pump unit is required for any air-conditioning equipment with a motor. Some jurisdictions interpret "within sight" loosely, but the practical and safest approach is to mount the disconnect on the wall immediately adjacent to the condenser.

How Far Can the Disconnect Be From the Condenser?

The NEC's "within sight" standard is generally interpreted as visible from the unit and no more than about 50 feet away with a clear, unobstructed line of sight. However, local inspectors may have stricter preferences. Before mounting, it's a good idea to check with your local building department to confirm what your AHJ lets you do.

Can You Use a Non-Fused Disconnect With Any AC Unit?

Not necessarily. If the equipment nameplate specifies a "maximum fuse size" rather than a generic "maximum overcurrent protection device," you need fused protection, either through a fused disconnect or through fuse protection elsewhere in the circuit. Always follow what the nameplate calls for.

Can a Homeowner Legally Wire an AC Disconnect?

It depends on your area. Some U.S. states and cities let you pull your own electrical permits and do the work yourself if you live in the home. Others need a licensed electrical contractor for any permanent wiring, especially work inside the main service panel. Check with your local building department before you start, and factor in that improper work can affect your homeowner's insurance and equipment warranties.

Does the AC Disconnect Need a Neutral Conductor?

Many straight-cool condensers use only two hot wires and an equipment ground, so no neutral passes through the disconnect at all. However, certain heat pumps, crankcase heaters or control circuits may need a neutral. Always follow the unit's wiring diagram and local code. If a neutral is needed and you don't run one, the equipment won't operate correctly and you'll fail inspection.
