How to Choose the Best Packaged Unit for Your Home

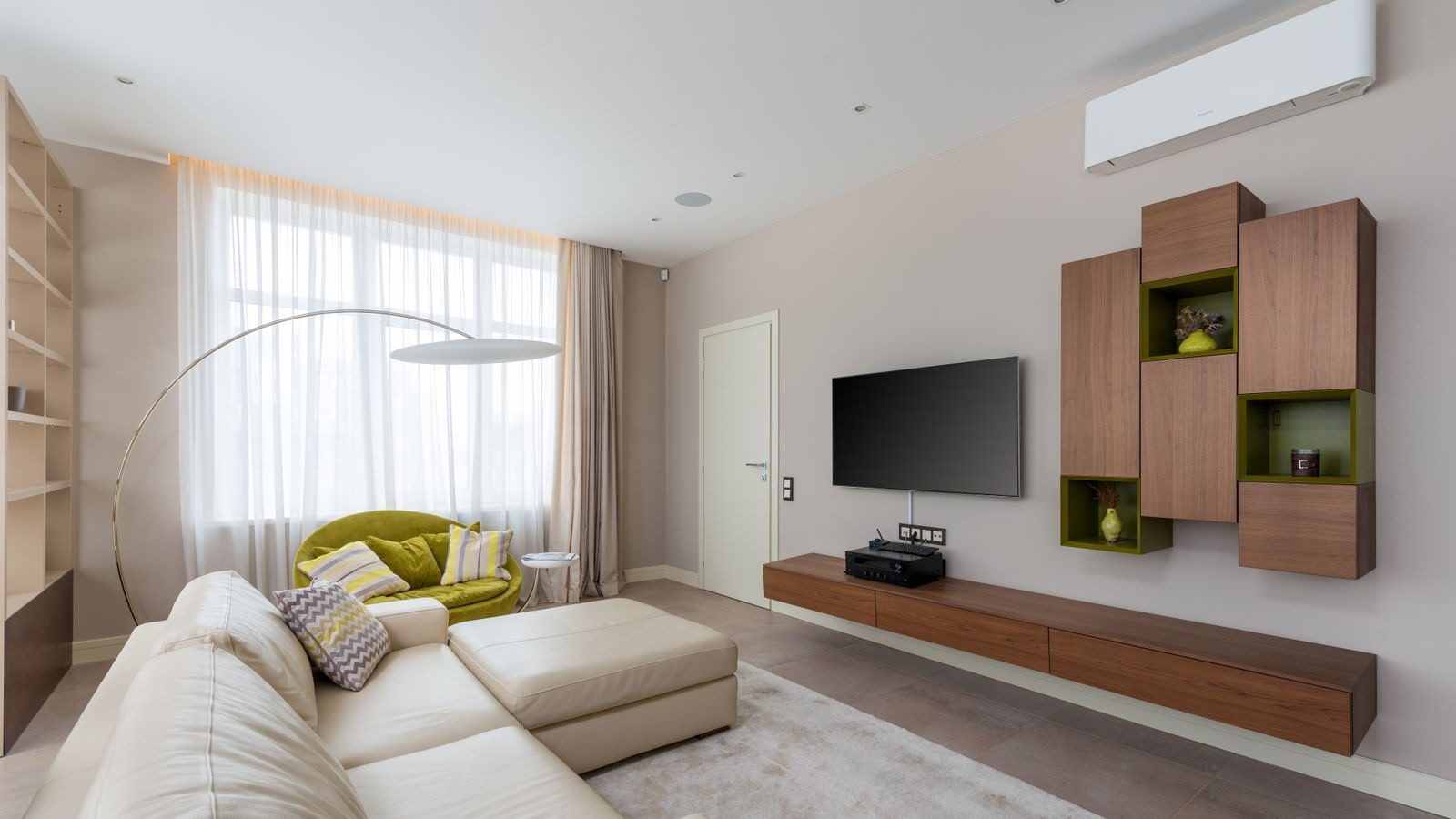

Wall-mounted packaged hvac unit for home in upper right corner of modern living room

What Is an HVAC Packaged Unit?

A packaged unit has all the major components in a single outdoor cabinet: compressor, condenser coil, evaporator coil, blower and heating source. Packaged HVAC systems contain heating and cooling components in one unit, which is what separates them from a split system. In a split system, the evaporator and air handler are inside the house (in an attic, basement or closet) while the condenser is outside. A packaged unit has everything outdoors and connects to the house through ductwork only.

This design is common in homes built on slabs or mobile homes where there is no basement or attic space for an indoor air handler. Packaged rooftop units combine heating and cooling in one system and are standard on commercial buildings, but residential ground-level installs on concrete pads are just as common.

Because all mechanical components sit in one location, packaged units have maintenance servicing in one spot. That makes service calls easier. Due to the concentrated location of the compressor, condenser fan and blower, outdoor noise can be noticeable.

Packaged Unit Types for Heating and Cooling

With packaged units, you can get different configurations such as a heat pump or gas/electric. Here are the four main types:

Packaged air conditioner. It's cooling only, with optional electric strip heat for mild winters. Packaged air conditioning units are a good fit for warmer areas where there isn't much indoor space. Modern packaged units have high SEER2 and HSPF2 ratings, depending on what configuration you pick.

Packaged heat pump. By turning the flow of refrigerant around, packaged heat pumps are combining heating and air conditioning in one unit. HSPF2 ratings are a measure of heating efficiency for heat pump models. These are energy efficient for mild climates where winter temperatures rarely drop below freezing.

Packaged gas-electric. It's an electric air conditioner paired with a natural gas furnace in one cabinet. Summer cooling is running on electricity and winter gas heating is running through a furnace section. This works well where gas infrastructure already exists.

Packaged dual-fuel. Packaged dual fuel systems are using electric heat pumps or gas furnaces, and they switch between the two based on the outdoor temperature. When temperatures drop below the heat pump's efficient range, the gas furnace is taking over. The heat pump is handling mild cold.

Packaged Units, Central AC and Split Systems

When a Packaged Unit Makes Sense

For homes without enough indoor space for an air handler or furnace, packaged units are a good fit. If you're replacing an existing packaged system, matching the same footprint and duct connections is what keeps the cost of installation lower. Packaged units can make installation simpler compared to split systems because there's no indoor equipment to mount, wire or drain.

Rooftop installation frees up ground space around the house and keeps the unit away from flood zones. Proper installation and clearance are important to prevent roof leaks for roof-mounted units. The curb adapter and flashing must be sealed to the roof deck.

When a Split System Works Better

Homes with attics, basements or mechanical closets have room for indoor equipment. A split system is putting the air handler or furnace inside, where it's protected from weather, salt spray and storm debris. That is something that matters in a Gulf Coast climate.

Split systems also offer more part flexibility: you can pair different indoor units with a single outdoor unit to change capacity, airflow or efficiency. Service access is easier when the air handler is in a climate-controlled room rather than on a roof.

How to Choose the Best Packaged Unit

Carrying out a Manual J heat load calculation is essential for proper sizing. Proper sizing is critical to avoid short-cycling or constant running. An oversized unit cools fast but shuts off before removing enough humidity. An undersized unit runs nonstop during peak heat without reaching the set temperature.

Packaged units typically range from 2 to 5 tons in capacity. Your load calculation, performed by a licensed contractor, determines where you fall in that range based on square footage, insulation, window area, duct leakage and local climate data.

Verify voltage before ordering. Many packaged units ship in 208/230V single-phase variants, but three-phase models exist for larger installs. Mismatched voltage damages the compressor. Confirm breaker requirements with your installation plan. The nameplate on the unit lists minimum circuit ampacity and maximum fuse size.

SEER2 ratings indicate cooling efficiency in modern packaged units. Since January 2023, federal standards require a minimum of 13.4 SEER2 for single-package air conditioners. Compare SEER2 ratings within the same equipment type. A 15 SEER2 packaged heat pump and a 15 SEER2 packaged air conditioner serve different heating needs even though the cooling number matches.

Air Conditioner, Heat Pump or Dual-Fuel System?

In cooling-dominant climates like the Gulf Coast, a packaged air conditioner with electric strip heat handles mild winters at low upfront cost. If you want year-round efficiency from one unit, a packaged heat pump delivers both heating and cooling without burning fuel oil, propane or natural gas.

Heat pump heating performance depends on outdoor temperature. Check the HSPF2 rating and, for colder climates, whether the unit holds ENERGY STAR cold-climate certification, which needs maintaining at least 70 percent heating capacity at 5°F and a COP of 1.75 or higher. Air source heat pumps and ground source heat pumps both serve this market. Source heat pumps using ground loops cost more to install but deliver steadier performance in winter.

Dual-fuel packages are a heat pump paired with a gas furnace. The control board switches from electric heat to gas heating at a preset outdoor temperature, keeping efficiency high when the heat pump's COP drops. This makes sense where winters include extended freezing periods and gas is available.

Efficiency, Comfort and Long-Run Operating Costs

Higher efficiency ratings lead to lower monthly utility bills, but only when the rest of the air conditioning system is working correctly. Rated SEER2 is based on proper ductwork, the right refrigerant charge and clean filters. Duct leaks, dirty coils and wrong charge degrade real-world performance and raise energy costs regardless of the number on the data plate. ENERGY STAR Version 6.1 needs packaged unit SEER2 of at least 15.2 for cooling and EER2 of at least 11.51.

Compare heating efficiency by fuel type. Gas furnaces carry AFUE ratings (80 to 98 percent). Heat pumps carry HSPF2. Converting between the two requires knowing your local electricity and gas rates per unit of delivered heat. Packaged systems are optimized for energy use and maintenance needs are minimized when the right fuel matches the climate.

Humidity control matters in Gulf Coast climates. Variable-speed blowers and two-stage compressors run longer cycles at lower output, pulling more moisture from the air per cooling cycle. A properly sized cooling system running at part load removes more humidity than an oversized unit that short-cycles. Long run savings depend on climate, utility rates and usage patterns. We do not promise specific dollar amounts because every house is different.

Indoor Air Quality and Outdoor Air

Packaged units sit outdoors. Location affects performance: shading improves cooling efficiency in summer, but the cabinet must be elevated where flooding is possible and protected from salt spray in coastal zones. Condensing components should be corrosion-resistant in outdoor units. Look for powder-coated cabinets and coated condenser fins. Exposed to weather, packaged units can have a shorter lifespan if the cabinet finish and coil coatings are not rated for the environment.

Most packaged units recirculate indoor air through a filter and the cooling or heating coil. They do not pull in outdoor air for ventilation unless a fresh-air damper is added. Dedicated outdoor air systems provide efficient ventilation and dehumidification, but those are separate equipment. With packaged HVAC units, recirculated air is ventilated and dehumidified efficiently, which handles moisture already inside the house. Controlling infiltration from outside needs sealed ducts and a tight building envelope.

Installation Requirements for Packaged HVAC Units

We recommend licensed professional installation for every packaged unit. Gas furnaces, heat pump refrigerant circuits and high-voltage wiring all require permits and licensed trade work in most jurisdictions. Quality of installation impacts unit performance and lifespan. A unit installed with incorrect refrigerant charge, undersized ducts or missing clearances will never deliver its rated efficiency.

Key installation checks:

Duct sizing verification. Ducts that are too small are starving the blower for air, freezing the evaporator coil and reducing both comfort and efficiency. The ductwork must be able to handle the unit's rated CFM at acceptable static pressure.
Refrigerant charge verification. The installer must confirm charge against the manufacturer's subcooling or superheat numbers.
Service clearances. Leave the manufacturer's needed clearance on all sides and above the cabinet. For gas heating sections, combustible clearances are applying. Proper installation and clearance are preventing roof leaks and are allowing future service access.
Quiet operation planning. Higher operational noise can be associated with outdoor configurations of packaged units. Place the cabinet away from bedroom windows when possible.

Line Sets, Shipping and Delivery Expectations

With the compressor, evaporator coil and condenser coil all inside one cabinet, packaged units have no long refrigerant line sets between indoor and outdoor units. The only connections to the house are supply and return ducts and, for gas models, a gas line and flue vent.

Complete systems, condensers, air handlers, furnaces, packaged units and multi-zone mini splits are shipping by LTL freight on a pallet with curbside liftgate delivery. At the nearest safe point, the driver is lowering the pallet and is not carrying equipment inside, up stairs or into a garage. You'll want to plan for a way to move several hundred pounds from the curb to the install location.

Single-zone mini splits, thermostats, line sets and parts are shipping by UPS or FedEx ground when size lets them. If you're ordering a packaged unit, expect freight delivery and coordinate with your installer on timing.

Ratings, Indoor Components and Warranty Terms

For ductless systems and split systems, the indoor unit you pair with the outdoor unit is changing the system's rated efficiency. The same outdoor unit can carry very different ratings depending on the indoor head: ENERGY STAR lists Senville's SENA-12HF-OG at 25.4 SEER2 with the SENA-12HF-IGG head but 20.0 SEER2 with the SENA-12HF-IDG head. Because all components ship in one cabinet, packaged units are avoiding this variable, but if you're comparing a packaged unit against a split system alternative, confirm the exact indoor/outdoor match before comparing seer ratings.

Pioneer's warranty page gives 1 year of parts coverage if you don't register and up to 5 years when the unit is registered within one week after the product is properly installed. Labor is never covered, and coverage is lasting only while the original owner is living in the property.

Della is offering free extended lifetime parts coverage if the unit is registered within 100 days and is treating a registered non-professional install the same as a professional installation for parts. Della's lines are not pre-vacuumed, so a vacuum pump is still needed for any Della system.

Long Run and Pre-Charged Line Set Considerations

Pre-charged line sets matter for mini split and split system installs, not for packaged units. But if you're weighing a packaged unit against a DIY mini split, line set logistics become part of the comparison.

MRCOOL's multi-zone DIY manual lists pre-charged line sets of 11.5, 16, 25, 35 and 50 feet with a coupler kit for longer runs. The maximum is 75 feet per indoor unit. Excess line set should be coiled behind the condenser rather than cut. Cutting breaks the factory charge seal and voids the warranty. Refrigerant type must match the system generation (R-410A for older models, R-454B for newer ones).

A packaged unit skips all of this. The refrigerant circuit is factory-sealed inside the cabinet, charged at the factory and tested before shipping. That's one reason packaged units simplify the install process for homes where the ductwork is already in place.

Best Packaged Unit Buying Checklist

Before you request a quote, you should walk through each item:

Capacity. Confirm tonnage with a Manual J load calculation from your installer.
Voltage and breaker. Match the unit's nameplate voltage and amperage to your electrical panel.
Efficiency. Verify SEER2, EER2 and (for heat pumps) HSPF2 meet current federal and ENERGY STAR standards.
Configuration. Choose air conditioner, heat pump, gas-electric or dual-fuel based on your heating needs and fuel availability.
Corrosion resistance. In salt-air zones, confirm cabinet finish and coil coatings are rated for coastal exposure.
Warranty registration. Check the manufacturer's registration deadline (one week for Pioneer, 100 days for Della) and whether professional installation is needed for full coverage.
Current specs. Verify specifications and warranty terms directly with the manufacturer before ordering. Details change between production runs.
Shipping plan. Expect LTL freight with curbside liftgate delivery. You'll want to coordinate with your installer so your equipment does not sit outside longer than necessary.
Written quote. Email us at [email protected] for a written quote on the best packaged unit for your house, your climate and your ductwork. We'll respond by email only, with current pricing and availability.

Check current manufacturer specifications before buying. Efficiency standards, refrigerant types and warranty terms are shifting. What was accurate six months ago may not apply to the unit on the pallet today. We are here to help you match the right equipment to your house. Request a written email quote before you commit. We will walk through the details with you.
